Security Light: Not Illuminated, DTC B10E6:11/- [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes

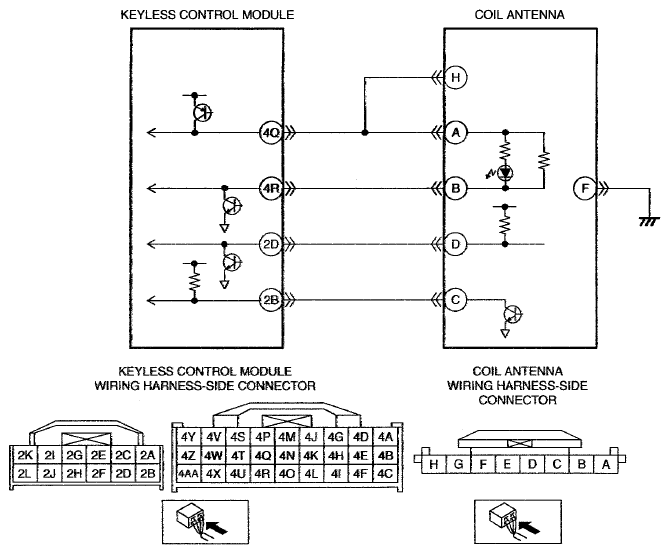

DTC B10E6:11 POSSIBLE CAUSE REFERENCE CHART
| DTC | Security light flashing pattern | - | Voltage less than the specification (2.2-6.5 V) is detected for 0.5 s while the coil antenna power supply circuit is active | |
| M-MDS display | Keyless control module | B10E6:11 | ||
| PCM | - | |||
| POSSIBLE CAUSE |
|
|||
