Security Light: Not Illuminated, DTC B10E6:12/- [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC B10E6:12(IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

DTC Security light flashing pattern - Short to power supply in coil antenna power supply circuit
M-MDS display Keyless control module B10E6:12
PCM -
DETECTION CONDITION
  • Coil antenna power supply circuit voltage is higher than the specification when the circuit is not active.
POSSIBLE CAUSE
  • Coil antenna connector or terminals malfunction
  • Keyless control module connector or terminals malfunction
  • Push button start connector or terminals malfunction
  • Short to power supply in coil antenna power supply circuit
  • Push button start malfunction
  • Coil antenna malfunction
  • Keyless control module malfunction

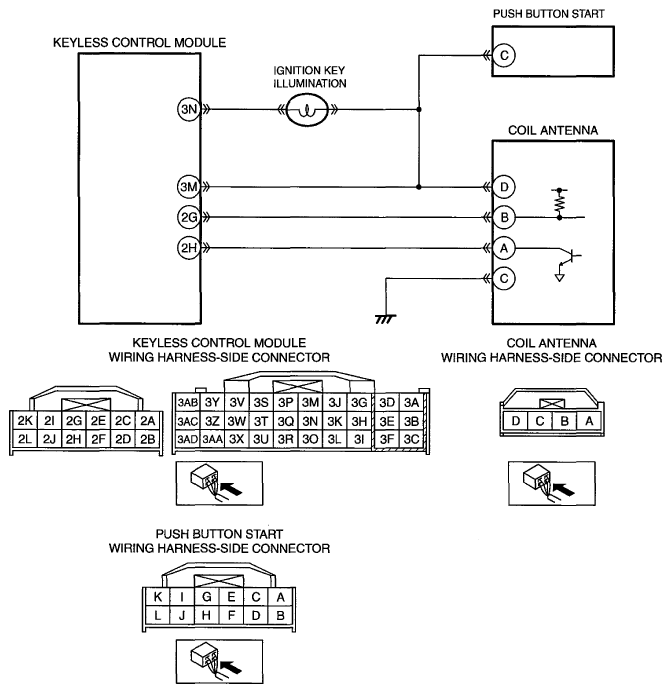

G06734069Courtesy of MAZDA MOTORS CORP.
