Security Light: Not Illuminated, DTC B10E6:11/- [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC B10E6:11(IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

DTC Security light flashing pattern - Short to ground in coil antenna power supply circuit
M-MDS display Keyless control module B10E6:11
PCM -
DETECTION CONDITION
  • Coil antenna power supply circuit voltage is lower than the specification when the circuit is active.
POSSIBLE CAUSE
  • Coil antenna connector or terminals malfunction
  • Keyless control module connector or terminals malfunction

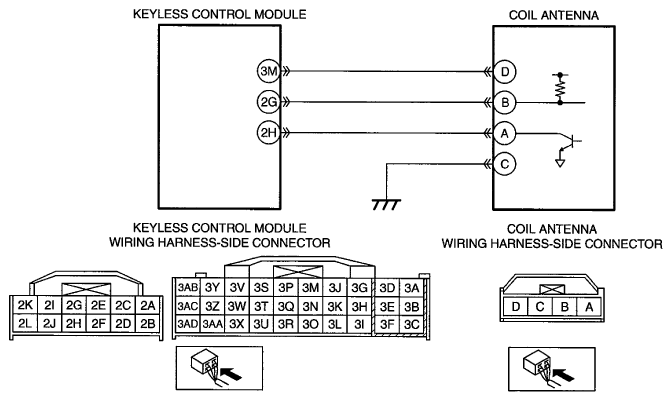

  • Short to ground in wiring harness between the following terminals:
    • Coil antenna terminal D-Keyless control module terminal 3M
  • Coil antenna malfunction
  • Keyless control module malfunction
G06734068Courtesy of MAZDA MOTORS CORP.
