Generator Removal Note

  1. Remove the cooler hose bracket bolt and set the cooler hose out of the way before performing the generator removal/installation.
  2. Remove the generator from above the engine compartment.

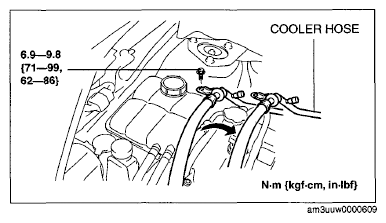

    Fig 1: Cooler Hose Bracket Bolt With Torque Specifications
    G06732984Courtesy of MAZDA MOTORS CORP.
