Battery Box Installation Note

  1. Assemble with battery box hooks B aligned with the battery tray holes at two points.

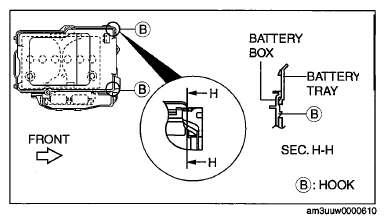

    Fig 1: Identifying Battery Box Hooks B With Battery Tray Holes
    G06732979Courtesy of MAZDA MOTORS CORP.
