Vehicles With Auto Light/Wiper System

Disconnect the negative battery cable.
Remove the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION ).
Make a tool as shown in the figure using wire.
CAUTION:
- Using the tool with bare hands can cause injury. Always wear gloves when using the tool.
- To prevent damage to the lens, do not use a Flathead screwdriver.

  Fig 1: Identifying Rearview Mirror Tool Specification
  Courtesy of MAZDA MOTORS CORP.

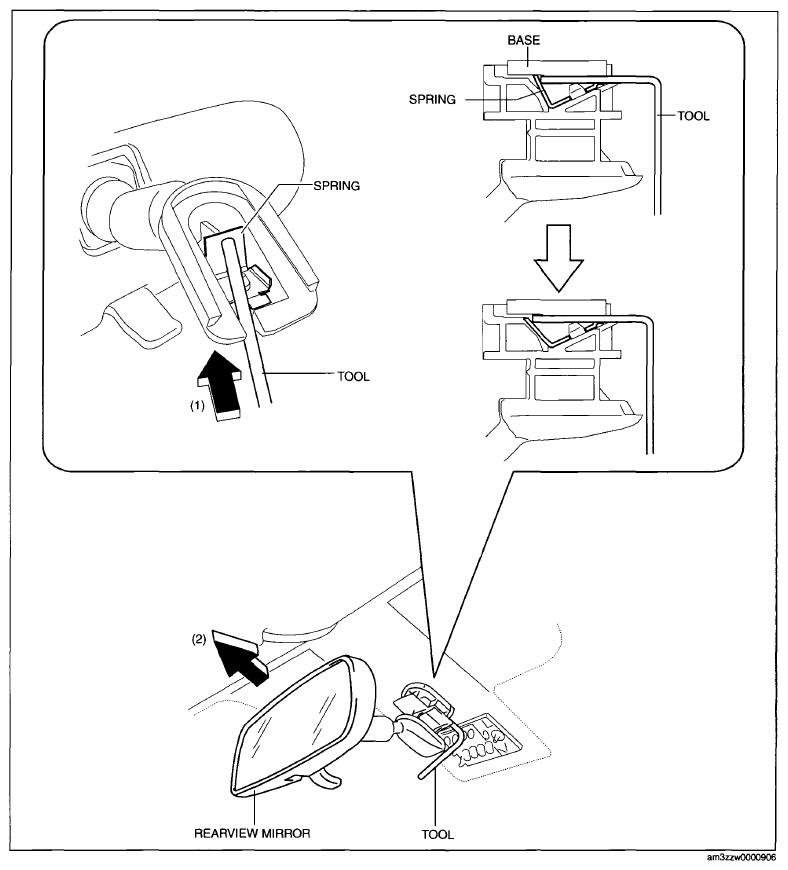

Insert the tool to the position shown in the figure and press the center part of the spring in the direction of arrows (1) shown in the figure, and then pull out the rearview mirror toward in the direction of arrows (2) shown in the figure.

Fig 2: Pressing Center Part Of Spring
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Perform the procedure while being careful not to damage the lens.
- When removing the rearview mirror, it may hit the headliner and cause a damage. Hold the rearview mirror with hands and be careful not to contact it with the headliner.
