Pattern 1

Terminal: A (+) <==> body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 100 ms/DIV (X), DC range

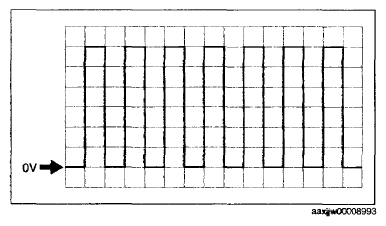

Fig 1: Pulse Generation (Reference) Pattern 1
Courtesy of MAZDA MOTORS CORP.
