No. 2 All Keyless Entry System Functions Inoperative [Keyless Entry System]

• When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harnesses are connected correctly and undamaged.

2	All keyless entry system functions inoperative
DESCRIPTION	Malfunction in BCM power supply circuit, door latch switch circuit, BCM ground circuit, or keyless receiver.
POSSIBLE CAUSE	Malfunction in IG1 or power supply signal circuit of BCM BCM power supply fuse malfunction Malfunction in wiring harness between BCM power supply fuses and BCM Malfunction in door open/closed signal circuit of BCM Door latch switch system malfunction BCM malfunction Malfunction in wiring harness between BCM and door latch switch Malfunction in BCM GND signal circuit Malfunction in wiring harness between BCM and ground Malfunction in keyless receiver Keyless receiver malfunction Malfunction in wiring harness between keyless receiver and BCM

DIAGNOSTIC PROCEDURE

STEP	INSPECTION		ACTION
1	INSPECT BCM POWER SUPPLY FUSES  Are the BCM power supply fuses normal?	Yes	Go to the next step.
		No	Install an appropriate amperage fuse.
2	INSPECT DOOR LATCH SWITCH INSTALLATION  Are the door latch switches installed securely?	Yes	Go to the next step.
		No	Install the door latch switches securely, then go back to Step 5 of keyless entry system preliminary inspection.

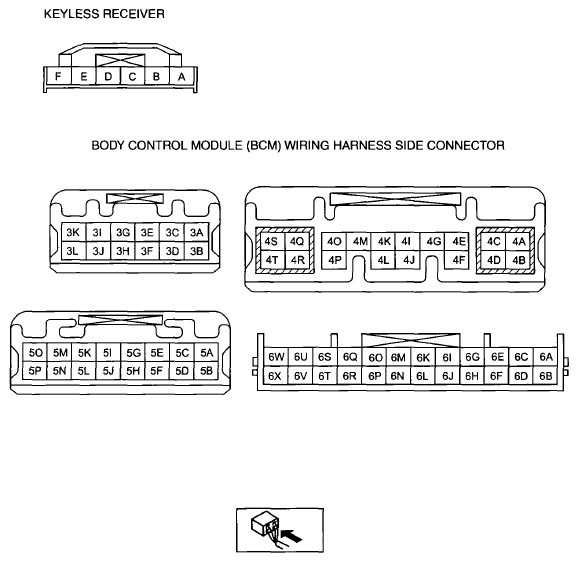

*3	INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN FUSE BLOCK AND BCM) OR ELSEWHERE  Switch the ignition to ON. Measure the voltage at the following BCM terminals: IG1 signal (terminal 4T) Power supply signal (terminal 3J, 5B, 4S) Is the voltage B+  ?	Yes	Go to the next step.
		No	Repair the wiring harness between the fuse block and BCM, then go to Step 13.
*4	INSPECT IF MALFUNCTION IS IN WIRING HARNESS (SHORT TO POWER SUPPLY BETWEEN FUSE BLOCK AND BCM, OR BETWEEN BCM AND GROUND) OR ELSEWHERE  Switch the ignition to off. Disconnect the BCM connector. Measure the voltage at the following BCM terminal (wiring harness-side): IG1 signal (terminal 4T) Is the voltage B+  ?	Yes	Repair the malfunctioning wiring harness, then go to Step 13.
		No	Go to the next step.
*5	INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN BCM AND GROUND) OR ELSEWHERE  Is there continuity between BCM terminal 2N, 4B and ground?	Yes	Go to the next step.
		No	Repair the wiring harness between the BCM and ground, then go to Step 13.
6	INSPECT DOOR SWITCH SIGNAL  Monitor following BCM (door switch) PID using the M-MDS. TR/LG_SW (Trunk lid/liftgate latch switch) DRSW_P (Passenger's door latch switch) DRSW_D (Driver's door latch switch) DRSW_LR (Left Rear door latch switch) DRSW_RR (Right Rear door latch switch) Are monitored PID values normal?	Yes	Go to the next step.
		No	Inspect for open or short circuit in wiring harness between BCM and suspected door latch/trunk lid/liftgate latch switch. If wiring harness is normal, inspect suspect door latch/trunk lid/liftgate latch switch. (See FRONT DOOR LATCH SWITCH INSPECTION ). (See REAR DOOR LATCH SWITCH INSPECTION ). (See TRUNK LID LATCH SWITCH INSPECTION ). (See LIFTGATE LATCH SWITCH INSPECTION ). If wiring harness malfunction, repair or replace wiring harness, then go to Step 13.
7	INSPECT BCM OR WIRING HARNESS (BETWEEN BCM AND DOOR LATCH SWITCHES FOR CONTINUITY)  Open and close all doors. Verify continuity between BCM terminals 6G, 6H, 6K, 6E and ground. Are there continuities followings? Open: Not continuity Close: Continuity	Yes	Replace the BCM and reprogram the transmitter ID code, then go to the next step.
		No	Repair the wiring harness between the BCM and door latch switches, then go to the next step.
8	INSPECT POWER SUPPLY FUSE  Is the keyless receiver power supply fuse normal?	Yes	Go to the next step.
		No	Inspect and repair short to GND in wiring harness at keyless receiver power supply circuit install an appropriate amperage fuse, then go to step 13.
9	INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN FUSE BLOCK AND KEYLESS RECEIVER) OR ELSEWHERE  Measure the voltage at the following keyless receiver terminal: B+ signal (terminal A) Is the voltage B+  ?	Yes	Go to the next step.
		No	Repair the wiring harness between the fuse block and keyless receiver, then go to Step 13.
10	INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN KEYLESS RECEIVER AND GROUND) OR ELSEWHERE  Is there continuity between keyless receiver terminal E and ground?	Yes	Go to the next step.
		No	Repair the wiring harness between the keyless receiver and ground, then go to Step 13.
11	INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN KEYLESS RECEIVER AND BCM) OR ELSEWHERE  Disconnect the keyless receiver connector and BCM connector. Is there continuity between the following terminals? 4K (BCM connector)-D (keyless receiver connector)	Yes	Go to the next step.
		No	Repair the wiring harness between the keyless receiver and BCM, then go to Step 13.
12	Measure the signal wave pattern for keyless receiver terminal D (6-pin) using an oscilloscope when the transmitter is operated with the key not inserted into the ignition key cylinder. Does the wave pattern change when the transmitter is operated? NOTE: Perform the oscilloscope setting using 0.5V/DIV (Y), 100ms/DIV (X), DC range.	Yes	Replace the BCM, then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION ).
		No	Replace the keyless receiver, then go to the next step. (See KEYLESS RECEIVER REMOVAL/INSTALLATION ).
13	REINSPECT MALFUNCTION SYMPTOM AFTER REPAIR  Does the keyless entry system operate properly?	Yes	Troubleshooting completed. Explain repairs to the customer.
		No	Reinspect the malfunction symptoms, then repeat from Step 1 if the malfunction recurs.
