On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry And Push Button Start System]

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

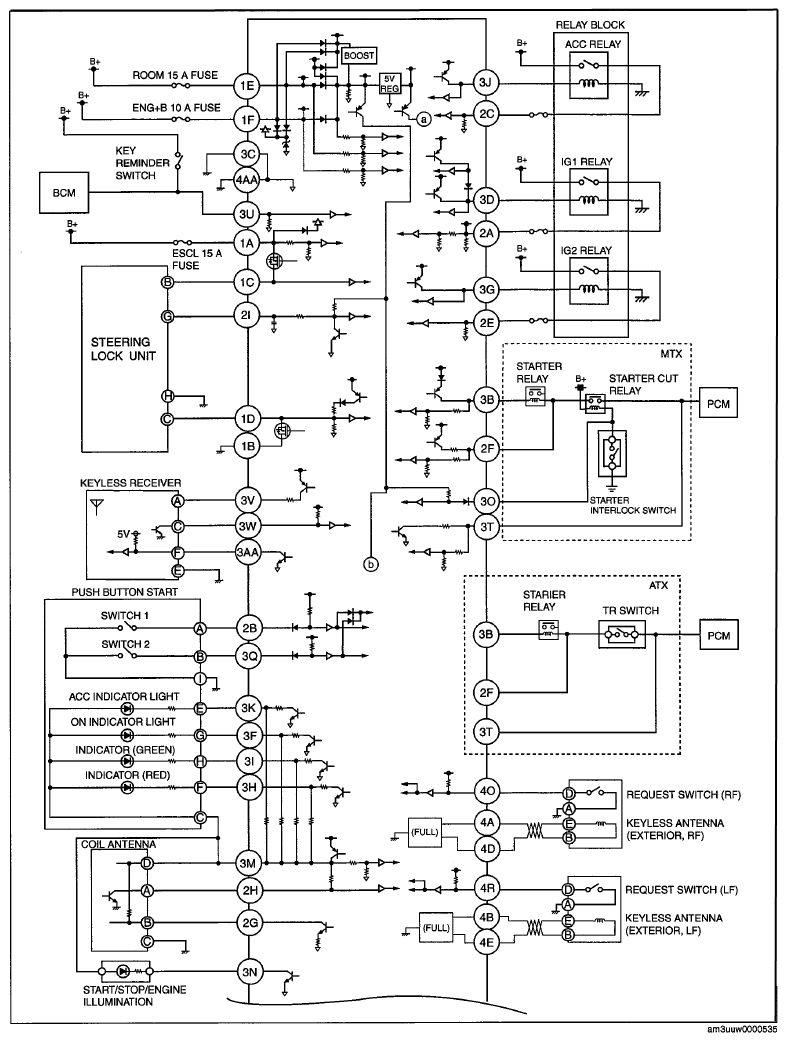

Fig 1: Advanced Keyless Entry And Push Button Start System - Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Advanced Keyless Entry And Push Button Start System - Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
