DTC U3004:17 [Advanced Keyless Entry And Push Button Start System]: Notes

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC U3004:17 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

DESCRIPTION High voltage in ACC monitor input circuit
DETECTION CONDITION
  • ACC monitor is on for 5 s when the ignition switch is off.
POSSIBLE CAUSE
  • Relay block connector or terminals malfunction
  • Keyless control module connector or terminals malfunction
  • Short to power supply in wiring harness between the following terminals:
    • Relay block terminal 2B-Keyless control module terminal 2C
  • Relay block malfunction
  • Keyless control module malfunction

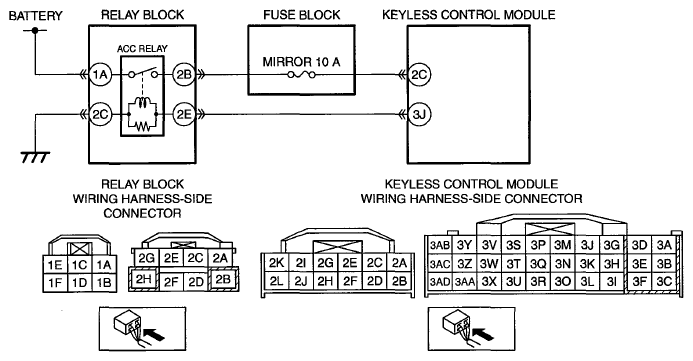

G06731488Courtesy of MAZDA MOTORS CORP.
