DTC P0615:13 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

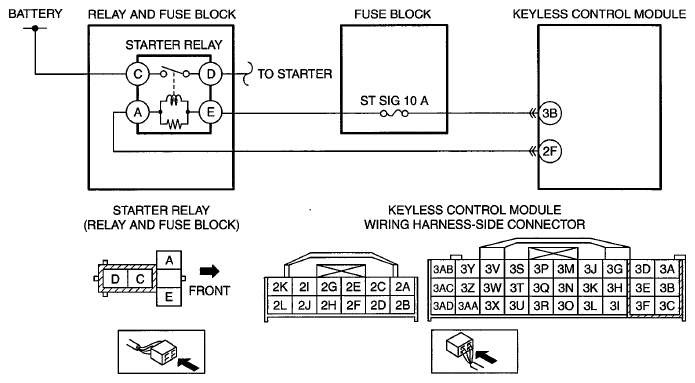

DTC P0615:13 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Open circuit in starter relay circuit |
| DETECTION CONDITION |
- Starter relay input voltage less than threshold and a starter monitor input voltage which exceeds threshold is detected for 0.075 s
.
|
| POSSIBLE CAUSE |
- Starter relay malfunction
- Keyless control module connector or terminals malfunction
- Open circuit in starter relay circuit
- Open circuit in wiring harness between keyless control module terminal 3B and starter relay terminal E
- ST SIG 10 A fuse malfunction
- Open circuit in wiring harness between the following terminals:
- Starter relay terminal A-Keyless control module terminal 2F
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
