DTC P0615:11 [Advanced Keyless Entry And Push Button Start System]: ATX
WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

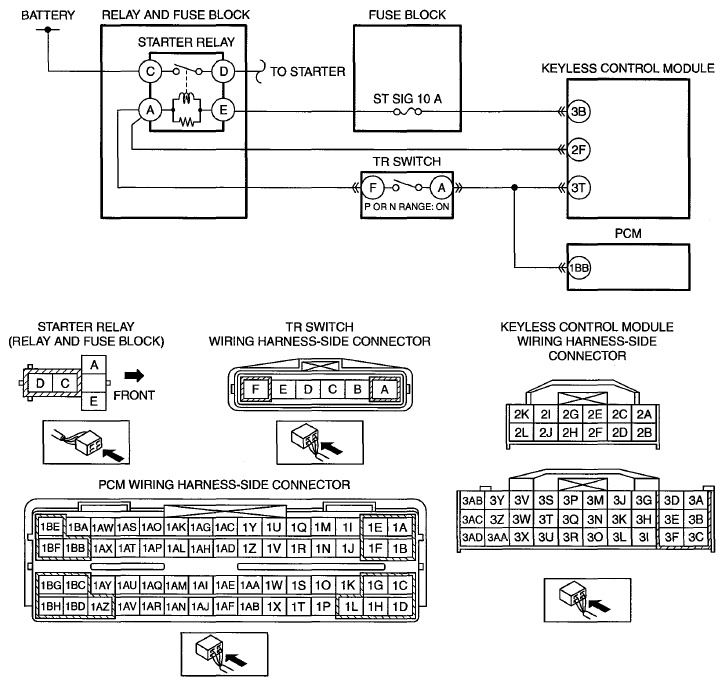

DTC P0615:11 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE - ATX
| DESCRIPTION |
Short to ground in starter relay circuit |
| DETECTION CONDITION |
- Starter monitor input voltage is less than the specification for 0.075 s
when the ignition switch is off.
- Starter relay input voltage is less than the specification for 0.050 s
during cranking the engine.
|
| POSSIBLE CAUSE |
- Starter relay malfunction
- TR switch connector or terminals malfunction
- TR switch malfunction
- PCM connector or terminals malfunction
- Keyless control module connector or terminals malfunction
- Short to ground in starter relay circuit
- Short to ground in wiring harness between the following terminals:
- Starter relay terminal E-Keyless control module terminal 3B
- Starter relay terminal A-Keyless control module terminal 2F
- Starter relay terminal A-TR switch terminal F
- TR switch terminal A-PCM terminal 1BB
- TR switch terminal A-Keyless control module terminal 3T
- ST SIG 10 A fuse malfunction
- PCM malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
