Vehicles With Power Seat Control Module

  1. Disconnect the front tilt motor connector.
  2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation.
    • If not as specified, replace the front seat slide adjuster.
    Motor operation Connection
    B+ GND
    Up B D
    Down D B

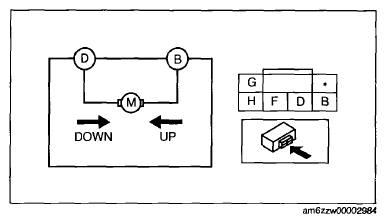

    Fig 1: Checking Front Tilt Motor (Vehicles With Power Seat Control Module)
    G07875345Courtesy of MAZDA MOTORS CORP.
