Discharge Headlight Control Module Removal/Installation

CAUTION:
  • Incorrect servicing of the discharge headlight control module could result in electrical shock. Before servicing the discharge headlight control module, always refer to the "Discharge headlight service warnings." (See DISCHARGE HEADLIGHT SERVICE WARNINGS ).
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION ).
  4. Remove the screws.
  5. Disconnect the connector A.

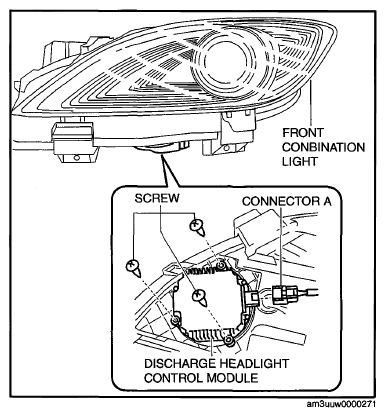

    Fig 1: Identifying Screws And Connector
    G06732088Courtesy of MAZDA MOTORS CORP.
  6. Remove the screw.
  7. Disconnect the connector B.
  8. Remove the discharge headlight control module.
  9. Install in the reverse order of removal.

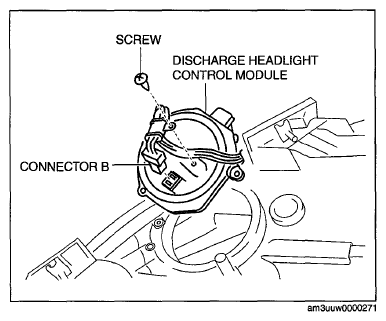

    Fig 2: Identifying Discharge Headlight Control Module, Connector And Screw
    G06732089Courtesy of MAZDA MOTORS CORP.
