Flywheel Installation Note

  1. Clean the crankshaft thread holes.
  2. Install the flywheel to the crankshaft.
  3. Hand-tighten the new flywheel lock bolts.
  4. Install the SST  to the flywheel.
  5. Gradually tighten the lock bolts in a crisscross pattern.

Tightening torque 97-103 N.m {9.9-10 kgf.m, 72-75 ft.lbf}

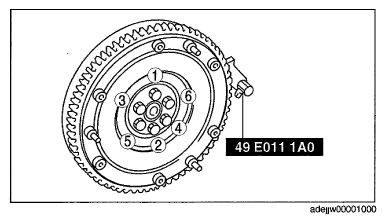

Fig 1: Installing SST To Flywheel
G06941160Courtesy of MAZDA MOTORS CORP.
