Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals.
    • If not as specified, replace the door lock switch.

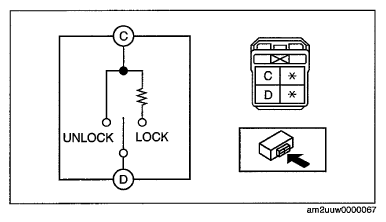

    Fig 1: Door Lock Switch Circuit
    G06942003Courtesy of MAZDA MOTORS CORP.
    Fig 2: Door Lock Switch Terminal Continuity Chart
    G04861117Courtesy of MAZDA MOTORS CORP.
