Selector Lever Cable Removal/Installation

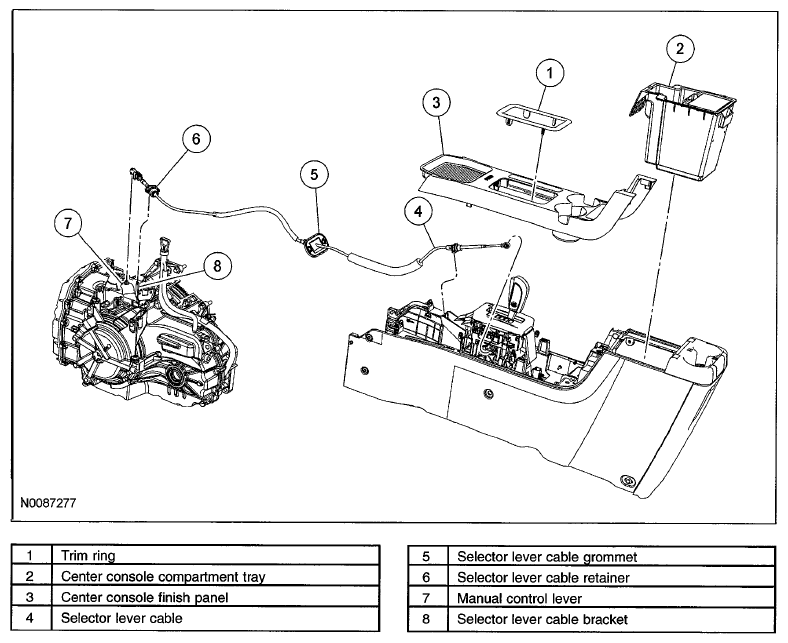

Fig 1: Identifying Selector Lever Cable Components

Courtesy of MAZDA MOTORS CORP.

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Place the selector lever in the (D) position.

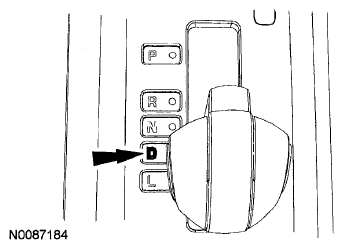

   Fig 2: Locating Selector Lever In (D) Position

   Courtesy of MAZDA MOTORS CORP.
3. Gently pry up to remove the upper selector lever trim ring.
   Fig 3: Locating Upper Selector Lever Trim Ring

   Courtesy of MAZDA MOTORS CORP.
4. Lift the center console lid and remove the center console compartment tray.
   Fig 4: Locating Center Console Compartment Tray

   Courtesy of MAZDA MOTORS CORP.
5. Remove the top finish panel.
   Fig 5: Locating Top Finish Panel

   Courtesy of MAZDA MOTORS CORP.
6. Remove the selector lever cable from the selector lever assembly.
   1. Disconnect the selector lever cable end from the selector lever.
   2. Remove the selector lever cable from the bracket.

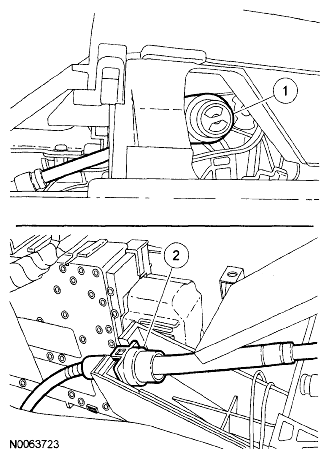

      Fig 6: Identifying Selector Lever Cable End And Selector Lever

      Courtesy of MAZDA MOTORS CORP.
7. Remove the 2 grommet nuts for the selector lever cable.
   • Tighten to 10 N.m {1.0 kgf-m, 89 in.lbf}.

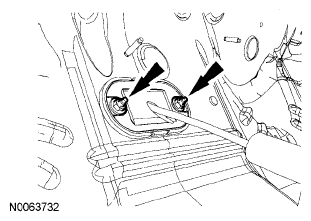

     Fig 7: Locating Grommet Nuts

     Courtesy of MAZDA MOTORS CORP.
8. Remove the selector lever cable retainer from the transaxle fluid filler tube.

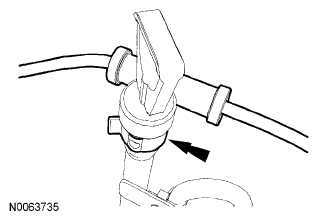

   Fig 8: Locating Selector Lever Cable Retainer And Transaxle Fluid Filler Tube

   Courtesy of MAZDA MOTORS CORP.
9. Disconnect the selector lever cable end from the manual control lever.

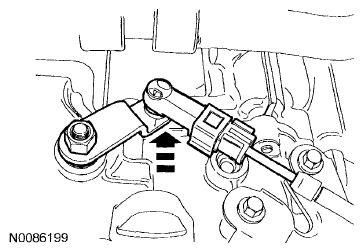

   Fig 9: Disconnecting Selector Lever Cable End From Manual Control Lever

   Courtesy of MAZDA MOTORS CORP.
10. Release the 2 tabs and remove the selector lever cable from the selector lever cable bracket.

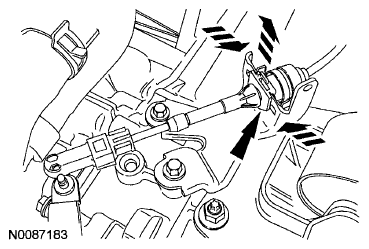

    Fig 10: Releasing Tabs And Selector Lever Cable From Selector Lever Cable Bracket

    Courtesy of MAZDA MOTORS CORP.
11. To install, reverse the removal procedure.
    • Adjust the selector lever cable after the installation. See SELECTOR LEVER CABLE ADJUSTMENT  .
