Fuel Tank And Fuel Filler Pipe - Exploded View
>>
Fuel Tank and Fuel Pump (FP) Module
Fuel Tank and Fuel Pump (FP) Module

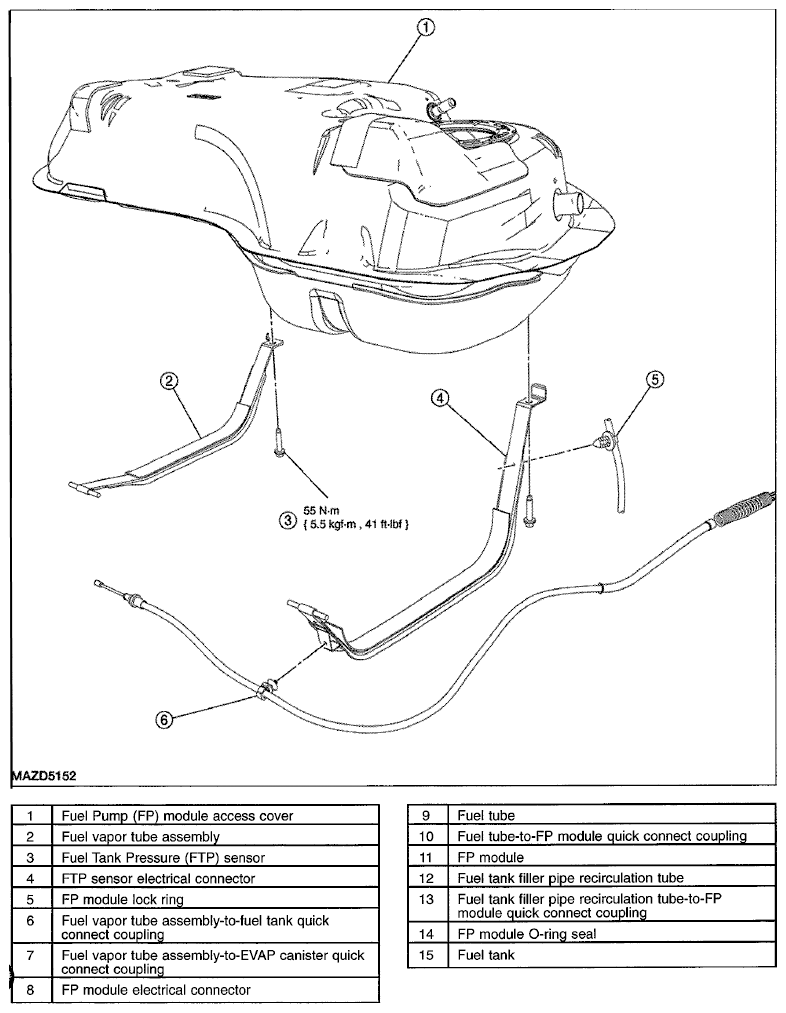

Fig 1: Fuel Tank And Fuel Pump (FP) Module Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
