Selector Cable Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the aerodynamic under cover NO 2. (for 5ATX). See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
  3. Remove the rear console. See REAR CONSOLE REMOVAL/INSTALLATION .
  4. Remove the dashboard. See DASHBOARD REMOVAL/INSTALLATION .
  5. Remove the A/C unit. See A/C UNIT REMOVAL/INSTALLATION .
  6. Remove the SAS control module. See SAS CONTROL MODULE REMOVAL/INSTALLATION .
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.
  9. Adjust the selector cable after having installed. See SELECTOR CABLE ADJUSTMENT .

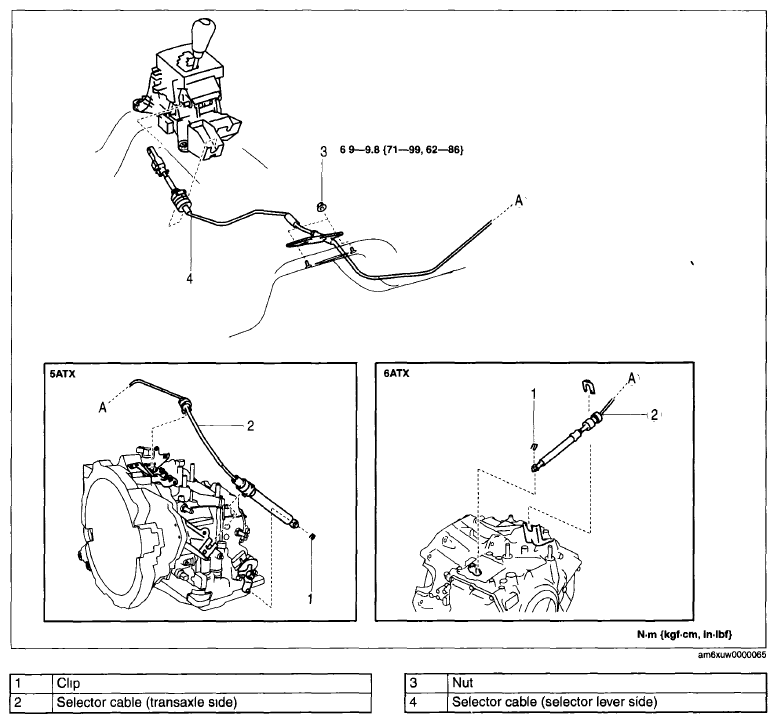

Fig 1: Selector Cable Replacement Components With Torque Specifications
G06205952Courtesy of MAZDA MOTORS CORP.
