Section 5 (Engine Control System (L5))
>>
Control System Location Index [L5]
Control System Location Index [L5]
WARNING:
This page is about a different variant/trim than selected.

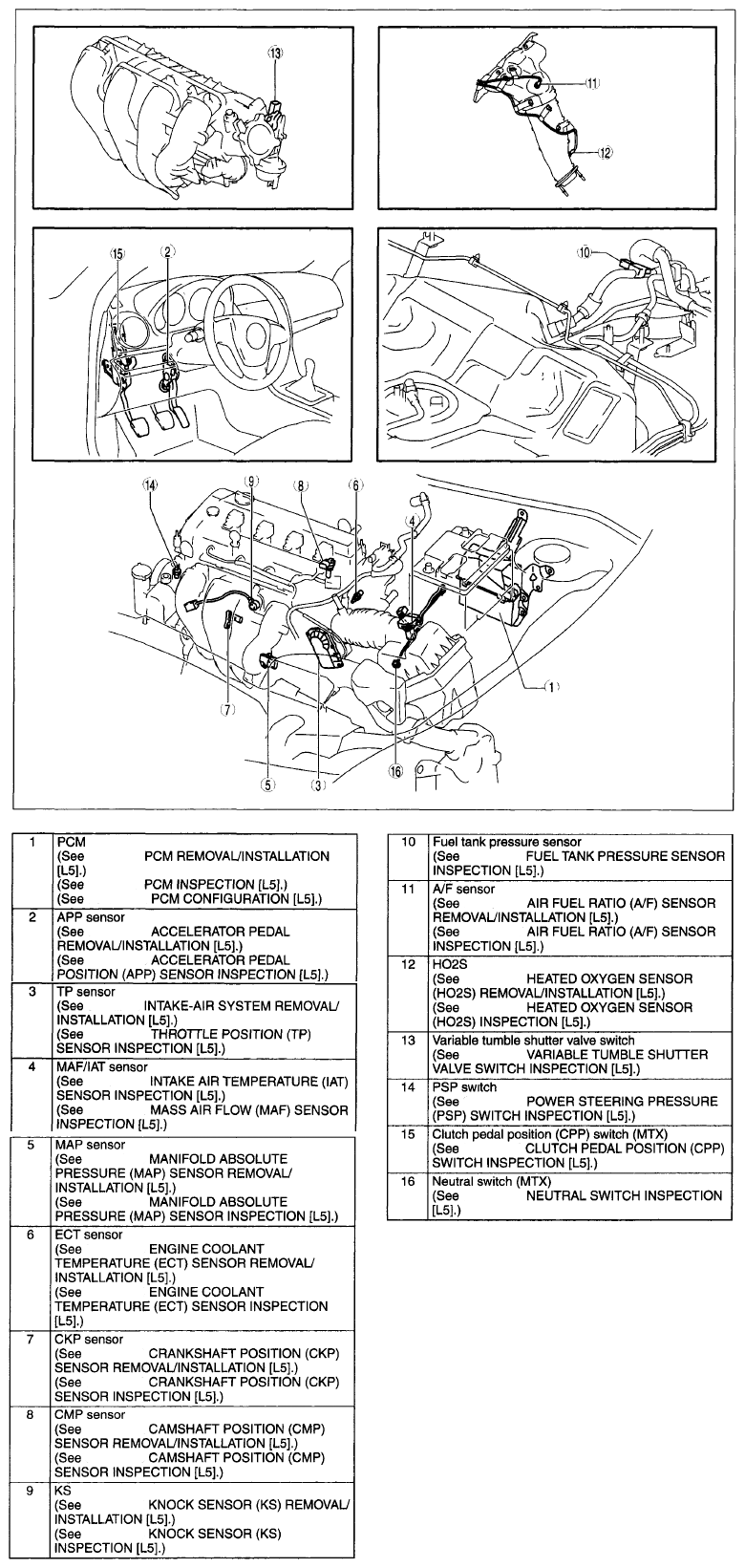

Fig 1: Locating Control System Components [L5]
Courtesy of MAZDA MOTORS CORP.
