Vehicles Without Auto Light/Wiper System

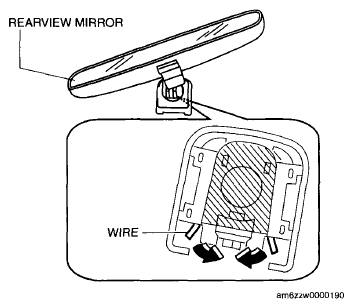

  1. Push the wire in the direction of the arrow shown in the figure.
  2. Fig 1: Pushing Wire
    G06200780Courtesy of MAZDA MOTORS CORP.
  3. Insert a flathead screwdriver between the rearview mirror and base.

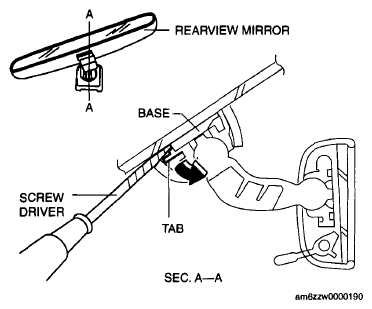

  4. Insert a tape-wrapped flathead screwdriver to the position shown in the figure and press the center part of the spring.
    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver
    G06200781Courtesy of MAZDA MOTORS CORP.

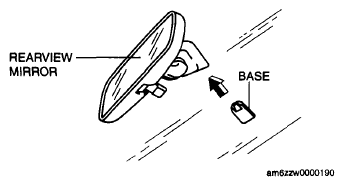

  5. Pull out the rearview mirror toward the vehicle rear.
    Fig 3: Pulling Out Rearview Mirror
    G06200782Courtesy of MAZDA MOTORS CORP.
