Blind Spot Monitoring (BSM) Control Module Inspection: Notes

  1. Remove the trunk end trim. See TRUNK END TRIM REMOVAL/INSTALLATION .
  2. Remove the rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
  3. Remove the rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
  4. Remove the trunk side trim. See TRUNK SIDE TRIM REMOVAL/INSTALLATION .
  5. Measure the BSM control module terminal voltage using the rear wiring harness connector in the position shown in the figure.

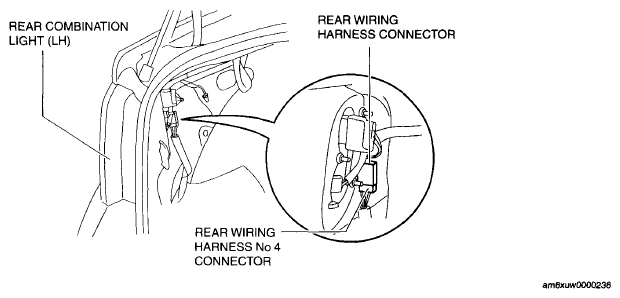

    Fig 1: Identifying Rear Combination Light And Rear Wiring Harness Connector
    G06201225Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The BSM control module connector cannot be connected to a tester due to its water-resistance processing, therefore the rear wiring harness connector is used for measuring the terminal voltage.
