Quick Diagnostic Chart

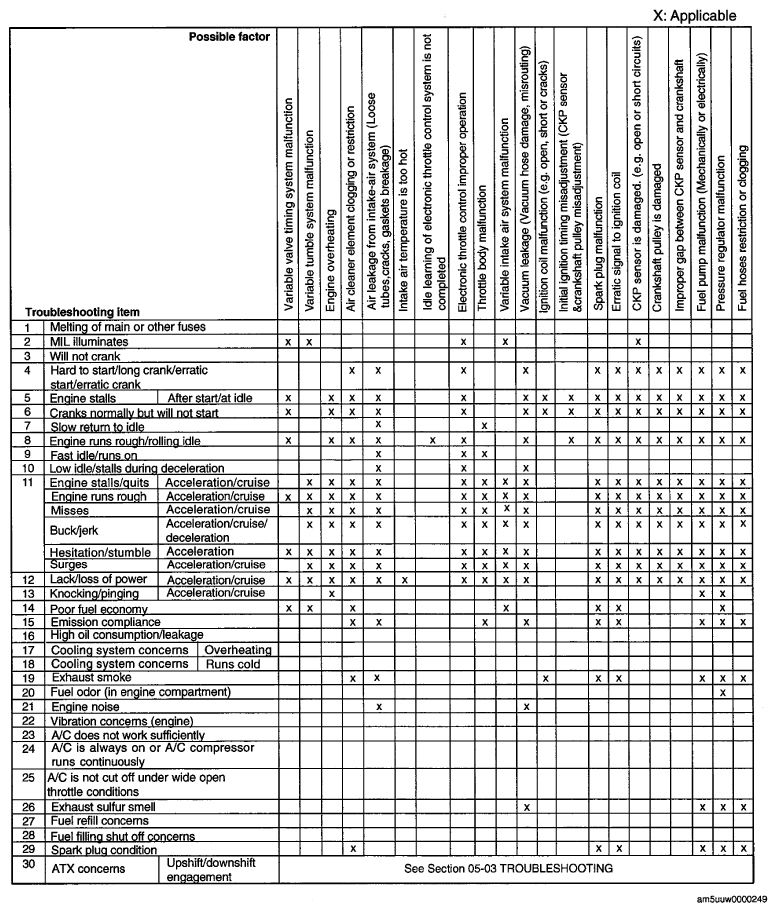

Fig 1: Quick Diagnostic Chart [L3] (1 Of 3)
G06760530Courtesy of MAZDA MOTORS CORP.
Fig 2: Quick Diagnostic Chart [L3] (2 Of 3)
G06760530Courtesy of MAZDA MOTORS CORP.
Fig 3: Quick Diagnostic Chart [L3] (3 Of 3)
G06760532Courtesy of MAZDA MOTORS CORP.
