Engine Compartment Side

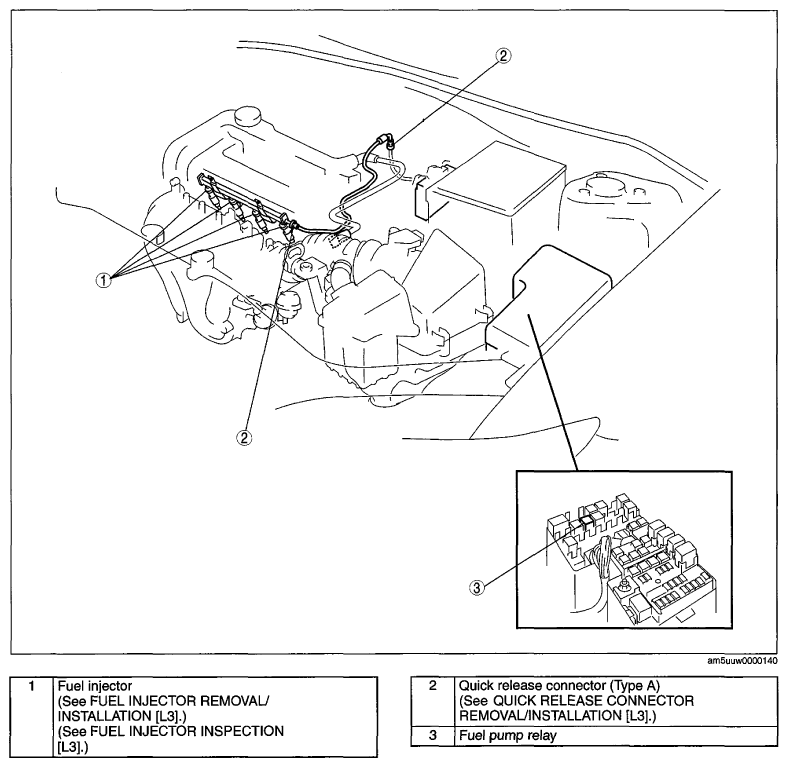

Fig 1: Identifying Fuel System Components Location (Engine Compartment Side)

G06760738

Courtesy of MAZDA MOTORS CORP.
