Keyless Entry System And Immobilizer System

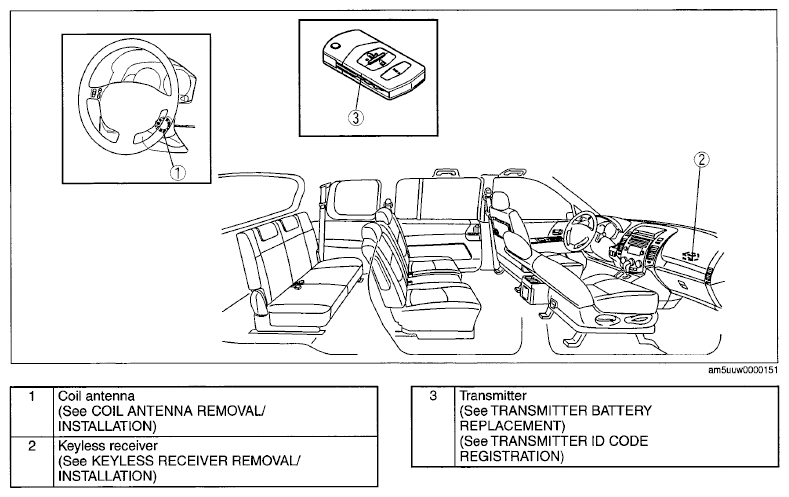

Fig 1: Identifying Keyless Entry System And Immobilizer System
G06762339Courtesy of MAZDA MOTORS CORP.
