Intermediate Sensor, AT Main Relay Connector End View

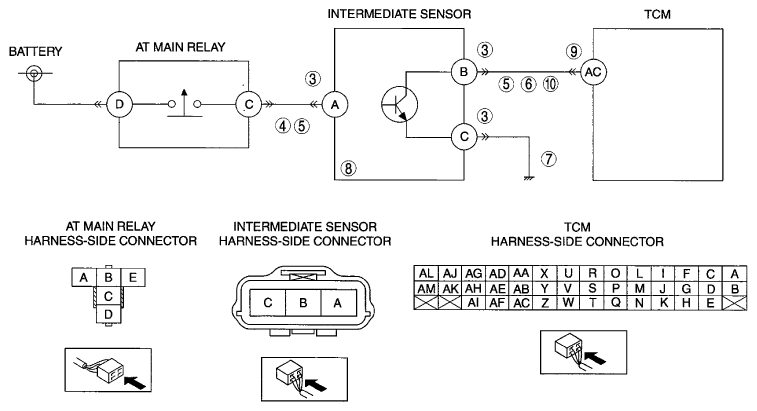

Fig 1: Intermediate Sensor, AT Main Relay Connector End View

G06761317

Courtesy of MAZDA MOTORS CORP.
