Quick Diagnostic Chart

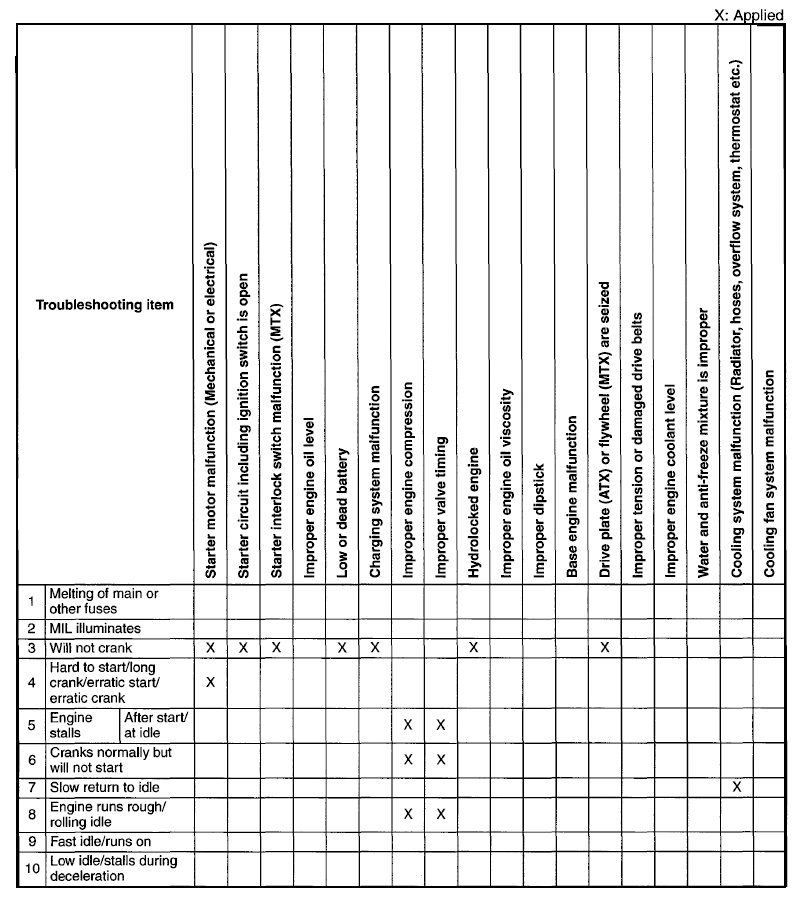

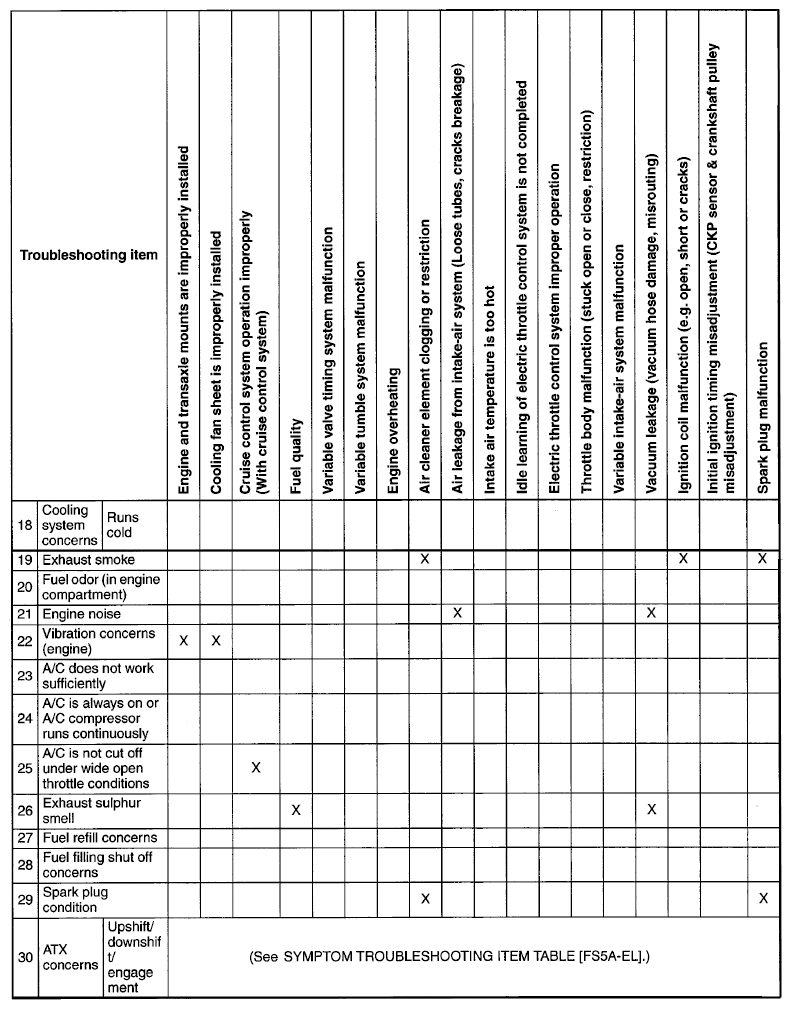

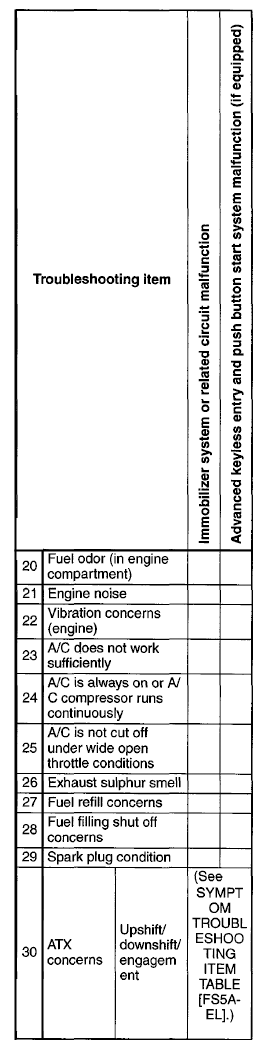

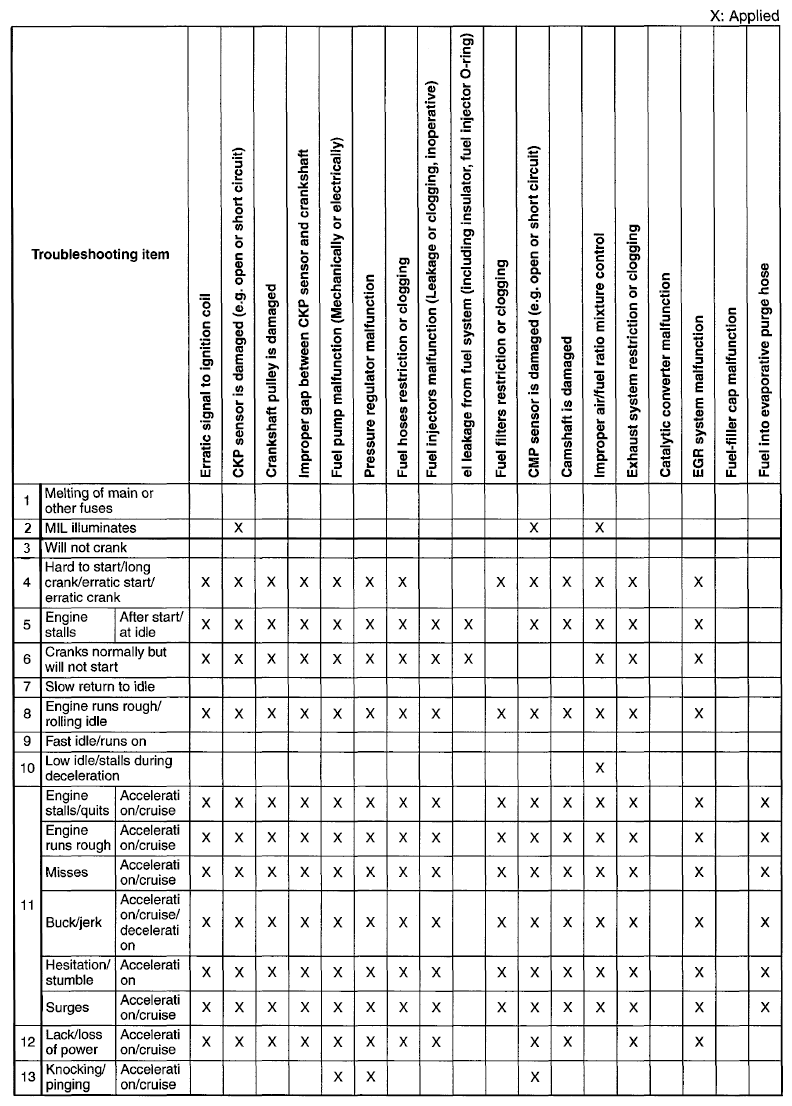

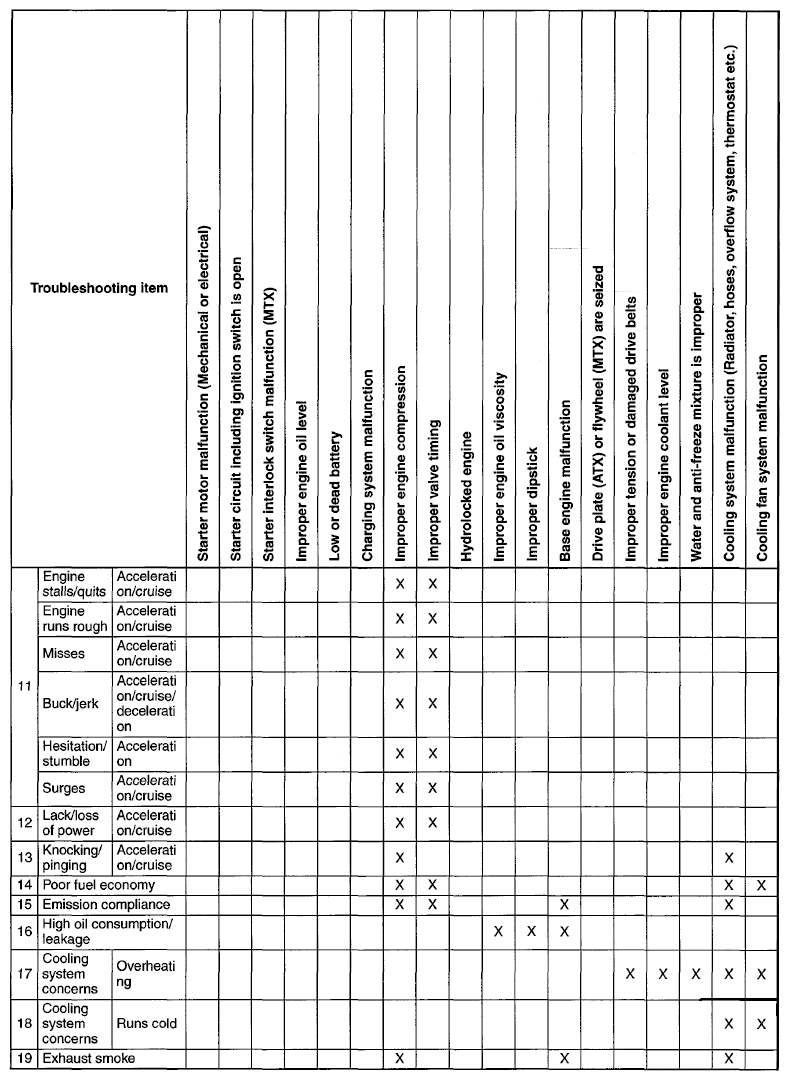

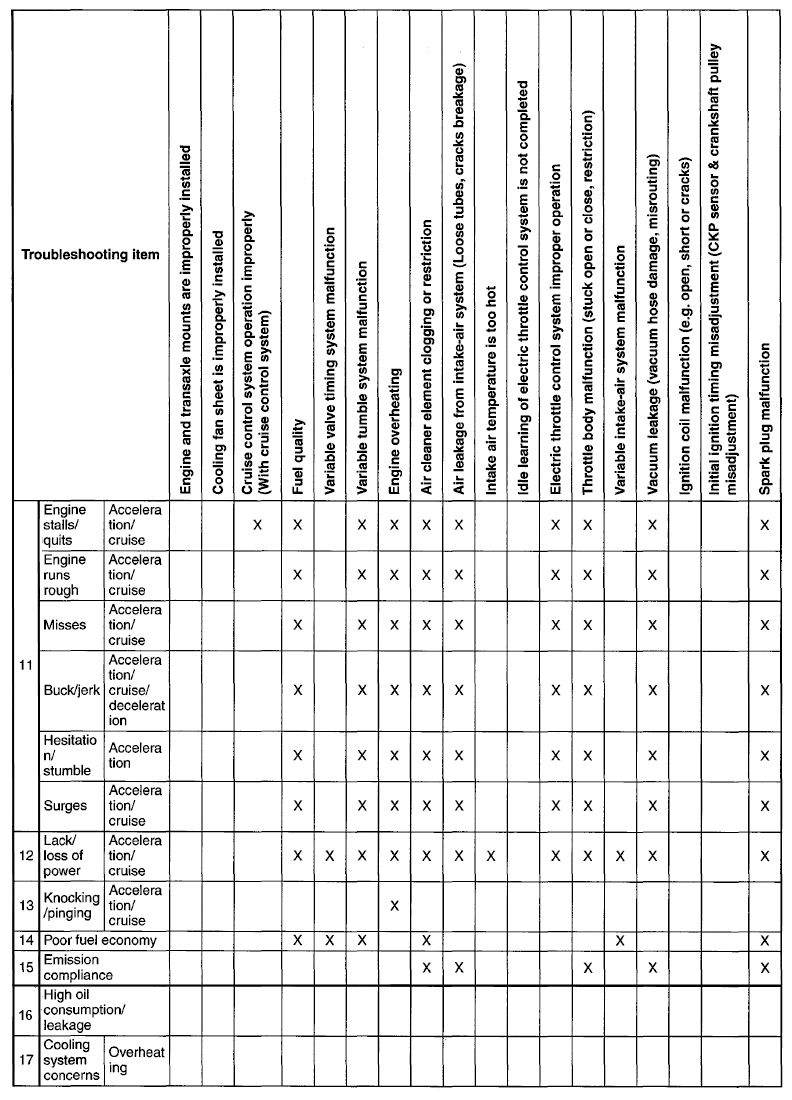

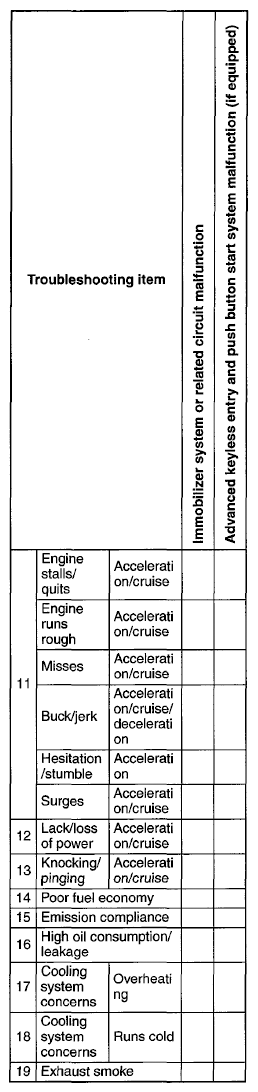

Fig 1: Quick Diagnostic Chart (LF, L5) (1 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Quick Diagnostic Chart (LF, L5) (2 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Quick Diagnostic Chart (LF, L5) (3 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Quick Diagnostic Chart (LF, L5) (4 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Quick Diagnostic Chart (LF, L5) (5 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Quick Diagnostic Chart (LF, L5) (6 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Quick Diagnostic Chart (LF, L5) (7 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 8: Quick Diagnostic Chart (LF, L5) (8 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Quick Diagnostic Chart (LF, L5) (9 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Quick Diagnostic Chart (LF, L5) (10 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Quick Diagnostic Chart (LF, L5) (11 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 12: Quick Diagnostic Chart (LF, L5) (12 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 13: Quick Diagnostic Chart (LF, L5) (13 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 14: Quick Diagnostic Chart (LF, L5) (14 Of 15)

Courtesy of MAZDA MOTORS CORP.

Fig 15: Quick Diagnostic Chart (LF, L5) (15 Of 15)

Courtesy of MAZDA MOTORS CORP.
