Control System Device And Control Relationship Chart

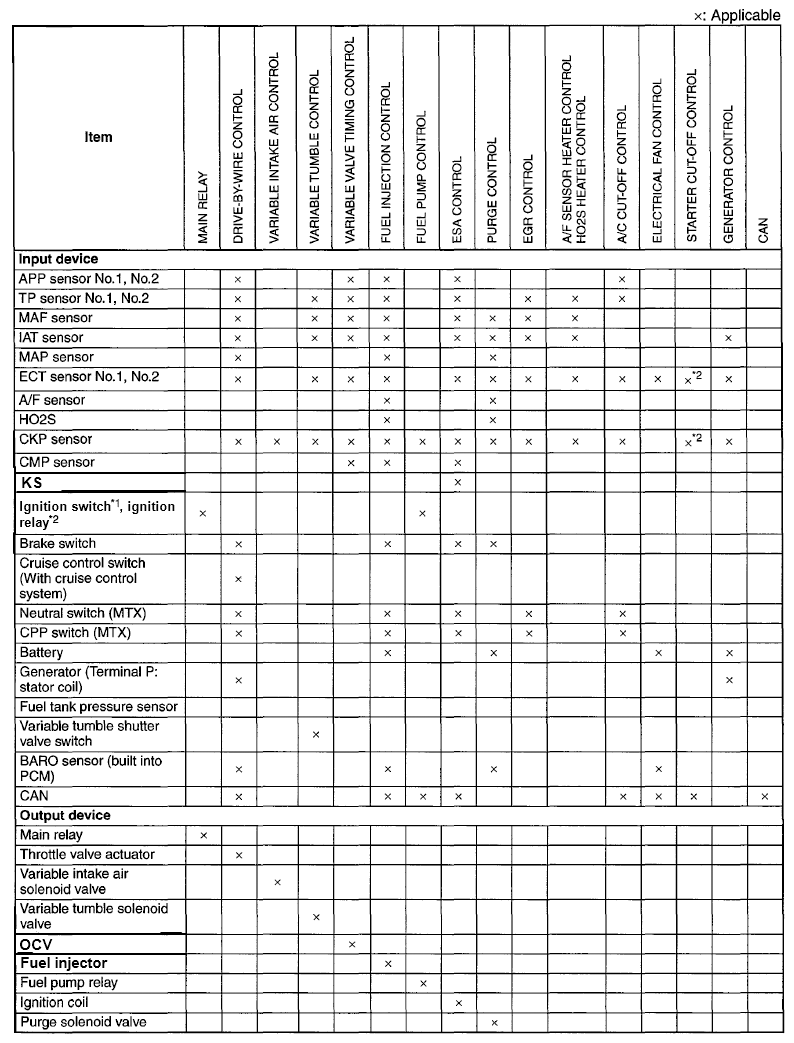

Fig 1: Control System Device And Control Relationship Chart (LF, L5) (1 Of 2)
G06730466Courtesy of MAZDA MOTORS CORP.

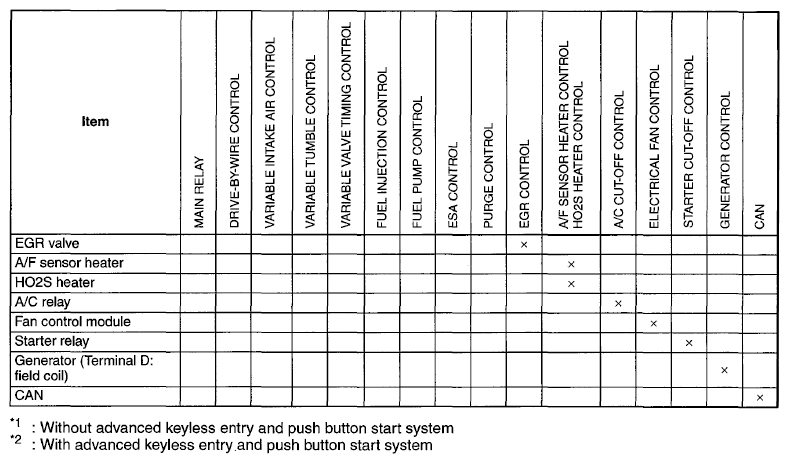

Fig 2: Control System Device And Control Relationship Chart (LF, L5) (1 Of 2)
G06730467Courtesy of MAZDA MOTORS CORP.
