DTC P2128:00: Notes

DTC P2128:00 (L3 WITH TC) DETECTION CONDITION & POSSIBLE CAUSES

DTC P2128:00 APP sensor No. 2 circuit high input
DETECTION CONDITION
  • The PCM monitors the input voltage from APP sensor No. 2 when the engine is running. If the input voltage is more than 3 V  , the PCM determines that the APP sensor No. 2 circuit has a malfunction.

Diagnostic support note
  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • APP sensor connector or terminals malfunction
  • PCM connector or terminals malfunction
  • Short to power supply in wiring harness between APP sensor terminal E and PCM terminal 1AC
  • Open circuit in wiring harness between APP sensor terminal D and PCM terminal 1AV
  • APP sensor No. 2 malfunction
  • PCM malfunction

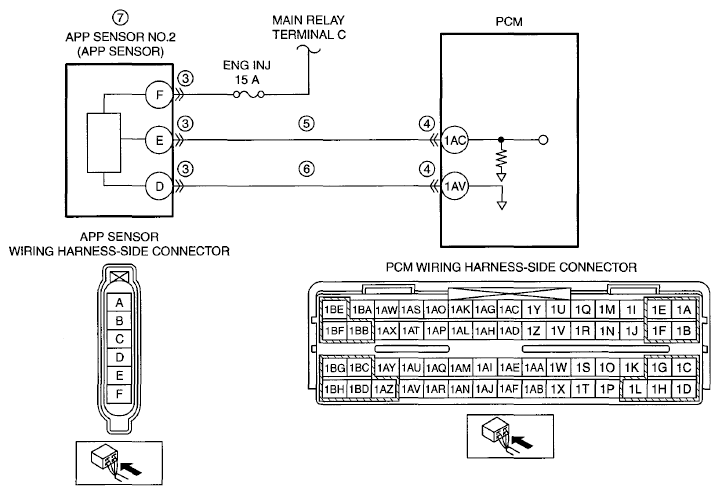

G06731684Courtesy of MAZDA MOTORS CORP.
