DTC P2006:00 (L3 WITH TC) DETECTION CONDITION & POSSIBLE CAUSES

DTC P2006:00	Variable swirl shutter valve stuck closed
DETECTION CONDITION	The PCM monitors the mass variable swirl shutter valve position using the variable swirl shutter valve switch. If the PCM turns the variable swirl solenoid valve off but the variable swirl position still remains closed (variable swirl shutter valve switch is off), the PCM determines that the variable swirl shutter valve is stuck closed. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.
POSSIBLE CAUSE	Variable swirl solenoid valve connector or terminals malfunction Variable swirl shutter valve switch connector or terminals malfunction Variable swirl solenoid valve malfunction Variable swirl shutter valve switch malfunction Variable swirl shutter valve actuator malfunction (stuck closed) Short to ground in wiring harness between the following terminals: Variable swirl solenoid valve terminal B-PCM terminal 2AS Variable swirl shutter valve switch terminal A-PCM terminal 2AE PCM connector or terminals malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P2006:00

Variable swirl shutter valve stuck closed

DETECTION CONDITION

The PCM monitors the mass variable swirl shutter valve position using the variable swirl shutter valve switch. If the PCM turns the variable swirl solenoid valve off but the variable swirl position still remains closed (variable swirl shutter valve switch is off), the PCM determines that the variable swirl shutter valve is stuck closed.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

Variable swirl solenoid valve connector or terminals malfunction
Variable swirl shutter valve switch connector or terminals malfunction
Variable swirl solenoid valve malfunction
Variable swirl shutter valve switch malfunction
Variable swirl shutter valve actuator malfunction (stuck closed)

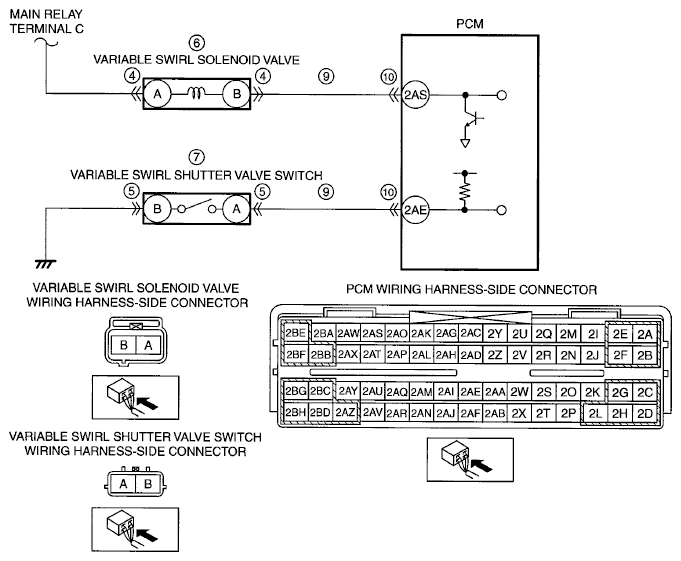

Short to ground in wiring harness between the following terminals:
- Variable swirl solenoid valve terminal B-PCM terminal 2AS
- Variable swirl shutter valve switch terminal A-PCM terminal 2AE
PCM connector or terminals malfunction
PCM malfunction
