DTC P0245:00: Notes

DTC P0245:00 (L3 WITH TC) DETECTION CONDITION & POSSIBLE CAUSES

DTC P0245:00 Wastegate control solenoid valve circuit low input
DETECTION CONDITION
  • When the PCM turns the wastegate control solenoid valve off but the wastegate control solenoid valve circuit voltage is low for 5 s, the PCM determines that the wastegate control solenoid valve control circuit voltage is low.

Diagnostic support note
  • This is a continuous monitor (other).
  • The MIL does not illuminate.
  • PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Wastegate control solenoid valve connector or terminals malfunction
  • Short to ground or open circuit in wastegate control solenoid valve power supply circuit
    • Short to ground in wiring harness between main relay and wastegate control solenoid valve terminal A
    • ENG BAR 1 15 A fuse malfunction
    • Open circuit in wiring harness between main relay and wastegate control solenoid valve terminal A
  • Short to ground in wiring harness between wastegate control solenoid valve terminal B and PCM terminal 2AA
  • Wastegate control solenoid valve malfunction
  • PCM connector or terminals malfunction
  • Open circuit in wiring harness between wastegate control solenoid valve terminal B and PCM terminal 2AA
  • PCM malfunction

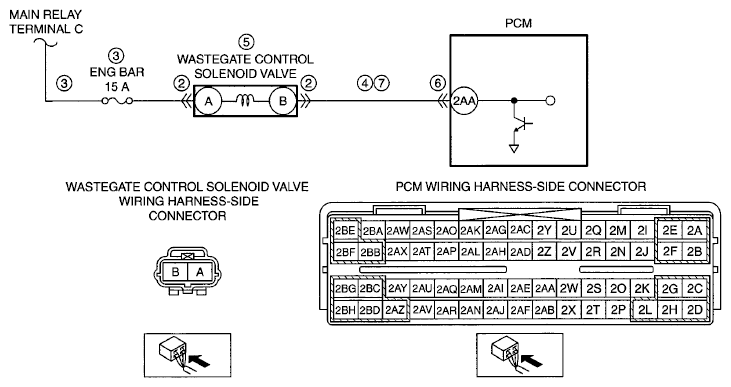

G06731641Courtesy of MAZDA MOTORS CORP.
