DTC P0117:00: Notes

DTC P0117:00 (L3 WITH TC) DETECTION CONDITION & POSSIBLE CAUSES

DTC P0117:00 ECT sensor No. 1 circuit low input
DETECTION CONDITION
  • The PCM monitors the ECT sensor No. 1 signal. If the PCM detects the ECT sensor No. 1 voltage is below 0.2 V  for 5 s  , the PCM determines that the ECT sensor No. 1 circuit has a malfunction.

    Diagnostic support note

    • This is a continuous monitor (engine cooling system).
    • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
    • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
    • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Engine overheating (Cooling system malfunction)
  • ECT sensor No. 1 connector or terminals malfunction
  • ECT sensor No. 1 malfunction
  • Short to ground in wiring harness between ECT sensor No. 1 terminal A and PCM terminal 2AH
  • PCM connector or terminals malfunction
  • ECT sensor No. 1 signal circuit and ground circuit are shorted to each other.
  • PCM malfunction

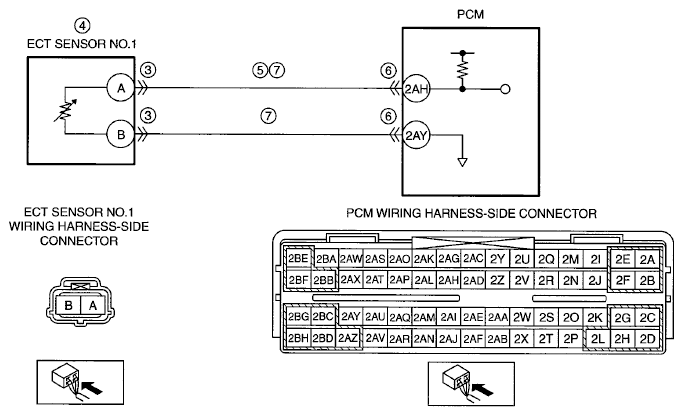

G06731623Courtesy of MAZDA MOTORS CORP.
