DTC P0108:00: Notes
DTC P0108:00 (L3 WITH TC) DETECTION CONDITION & POSSIBLE CAUSES
| DTC P0108:00 |
MAP sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor. If the input voltage is above 4.92 V
for 5 s
, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAP sensor/boost air temperature sensor connector or terminals malfunction
- PCM connector or terminals malfunction

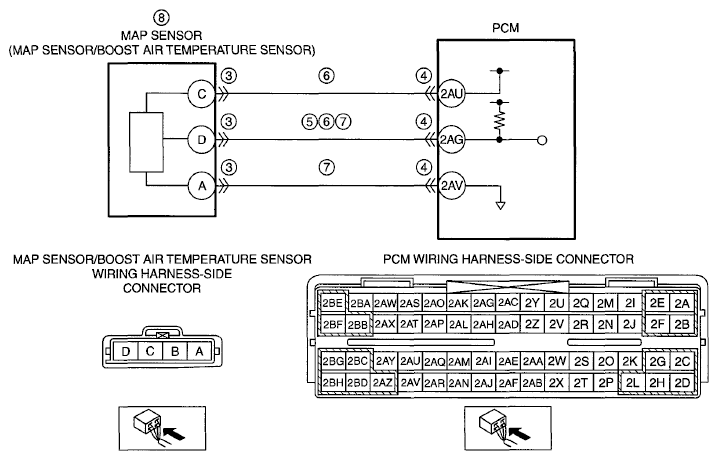

- Short to power supply in wiring harness between MAP sensor/boost air temperature sensor terminal D and PCM terminal 2AG
- MAP sensor power supply circuit and signal circuit are shorted to each other.
- Open circuit in wiring harness between the following terminals:
- MAP sensor/boost air temperature sensor terminal D-PCM terminal 2AG
- MAP sensor/boost air temperature sensor terminal A-PCM terminal 2AV
- MAP sensor malfunction
- PCM malfunction
|
