Accelerator Pedal Position (App) Sensor Removal/Installation

WARNING: This page is about a different variant/trim than selected.

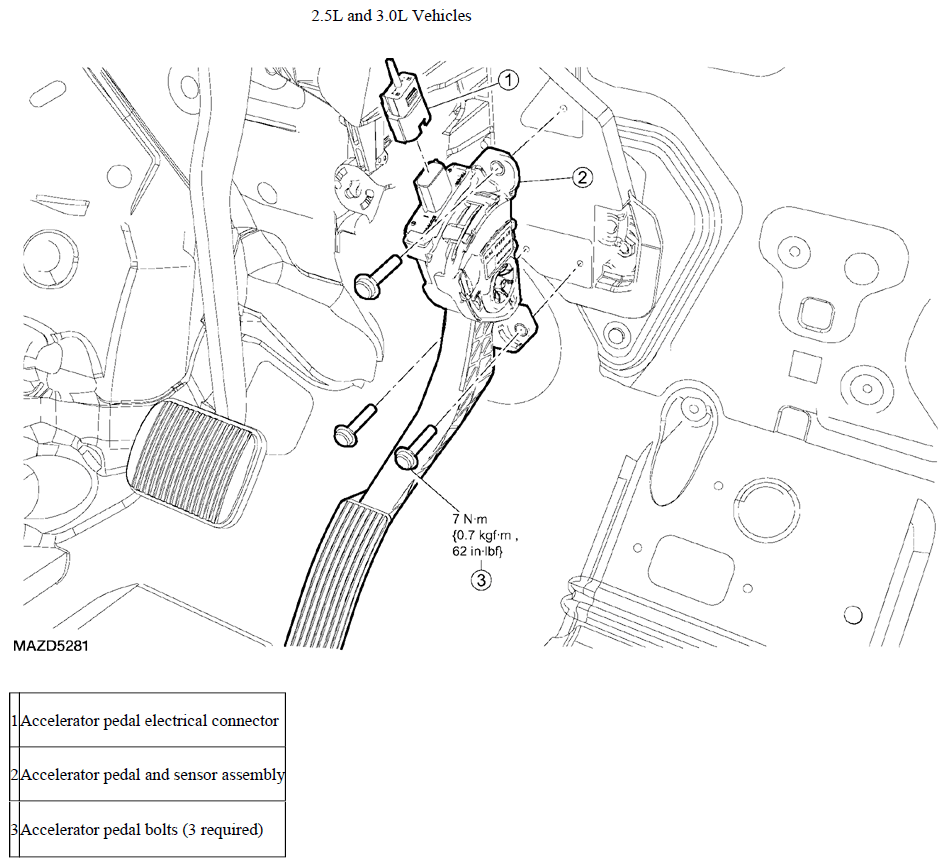

Fig 1: Accelerator Pedal Position Sensor Removal/Installation With Torque Specifications - 2.5L And 3.0L Vehicles

Courtesy of MAZDA MOTORS CORP.

Hybrid Vehicles

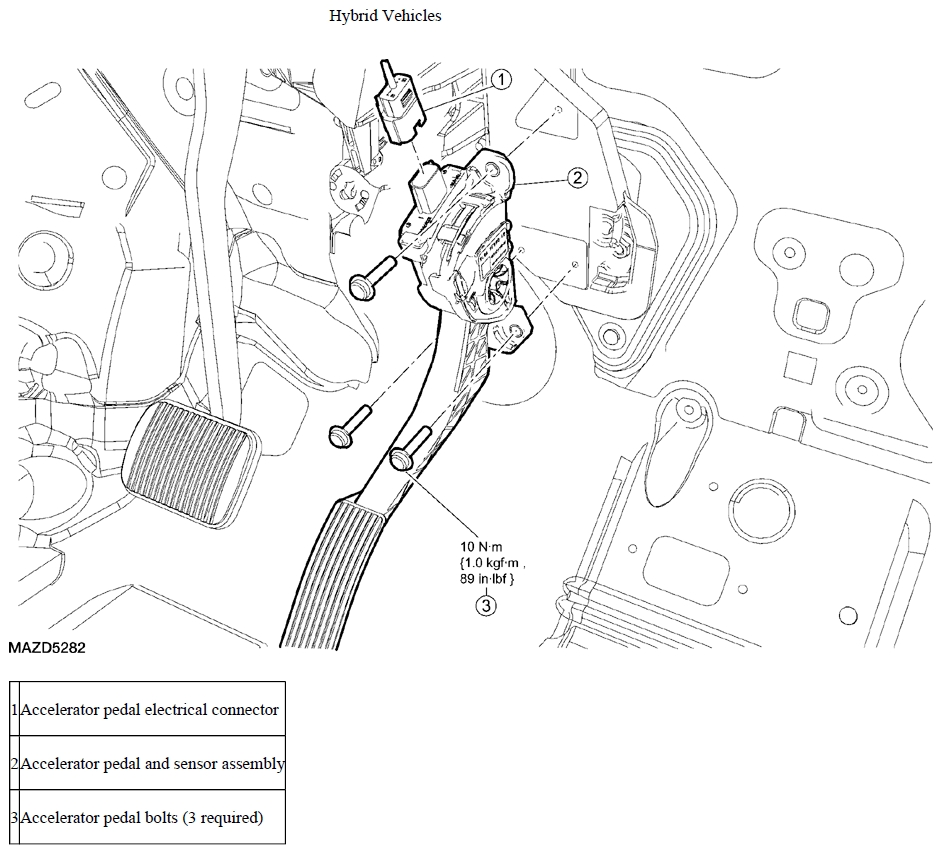

Fig 2: Accelerator Pedal Position Sensor Removal/Installation With Torque Specifications - Hybrid Vehicles

Courtesy of MAZDA MOTORS CORP.

Disconnect the accelerator pedal electrical connector.
Remove the 3 bolts and the accelerator pedal and sensor assembly.
- To install, tighten to 7 N.m {0.7 kgf.m, 62 in.lbf} (2.5L and 3.0L vehicles).
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf} (2.5L Hybrid vehicles).
To install, reverse the removal procedure.
