Circuit Open/Short Inspection: Notes

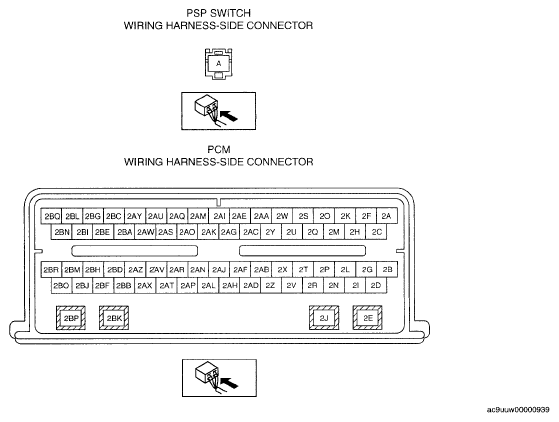

Fig 1: Identifying PSP Switch And Wiring Harness Side Connector
G05507954Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. See PCM REMOVAL/INSTALLATION [MZI-3.7] .
  2. Inspect the following wiring harness for open or short. (Continuity inspection)
