Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. See PCM REMOVAL/INSTALLATION [MZI-3.7] .
  2. Inspect the following wiring harness for open or short (continuity check).

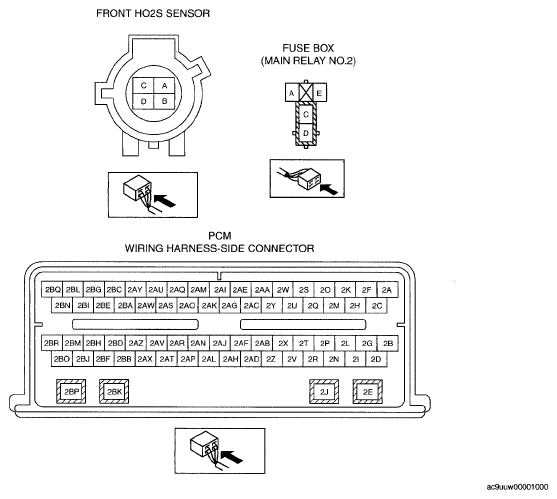

    Fig 1: Identifying PCM Warning Harness-Side Connector
    G05507974Courtesy of MAZDA MOTORS CORP.
