Mounting Rubber Assembly Note

Apply soapy water to the rubber part of the mounting rubber.
Temporarily install the steering gear so that the mounting rubber are in the positions shown in the figure.
CAUTION:
- If the mounting rubber is placed in the wrong position or assembled in the wrong direction, an installation malfunction will result when the vehicle is loaded. When assembling the mounting rubber, verify the position and directions.

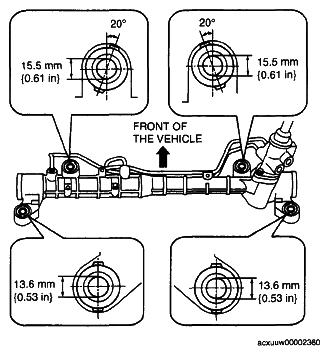

  Fig 1: Mounting Rubber With Specifications
  Courtesy of MAZDA MOTORS CORP.
Press the mounting rubber until the mounting rubber end comes out completely from the gear housing using the SSTs and a press.
Substitution SST
- 49 B032 317
  Outer diameter: 17.5-23 mm {0.7-0.9 in} Length 35 mm {1.4 in} or more.
- 49 B018 003
  Outer diameter: 36-38 mm {1.42-1.49 in}

  Fig 2: Pressing Mounting Rubber End From Gear Housing
  Courtesy of MAZDA MOTORS CORP.
Reverse the gear housing, then press the mounting rubber until the mounting rubber end comes out completely from the other side. At this time, make sure that the mounting rubber and steel pipe are aligned.

Fig 3: Pressing Mounting Rubber End From Gear Housing With SST
Courtesy of MAZDA MOTORS CORP.
