Security And Locks Location Index

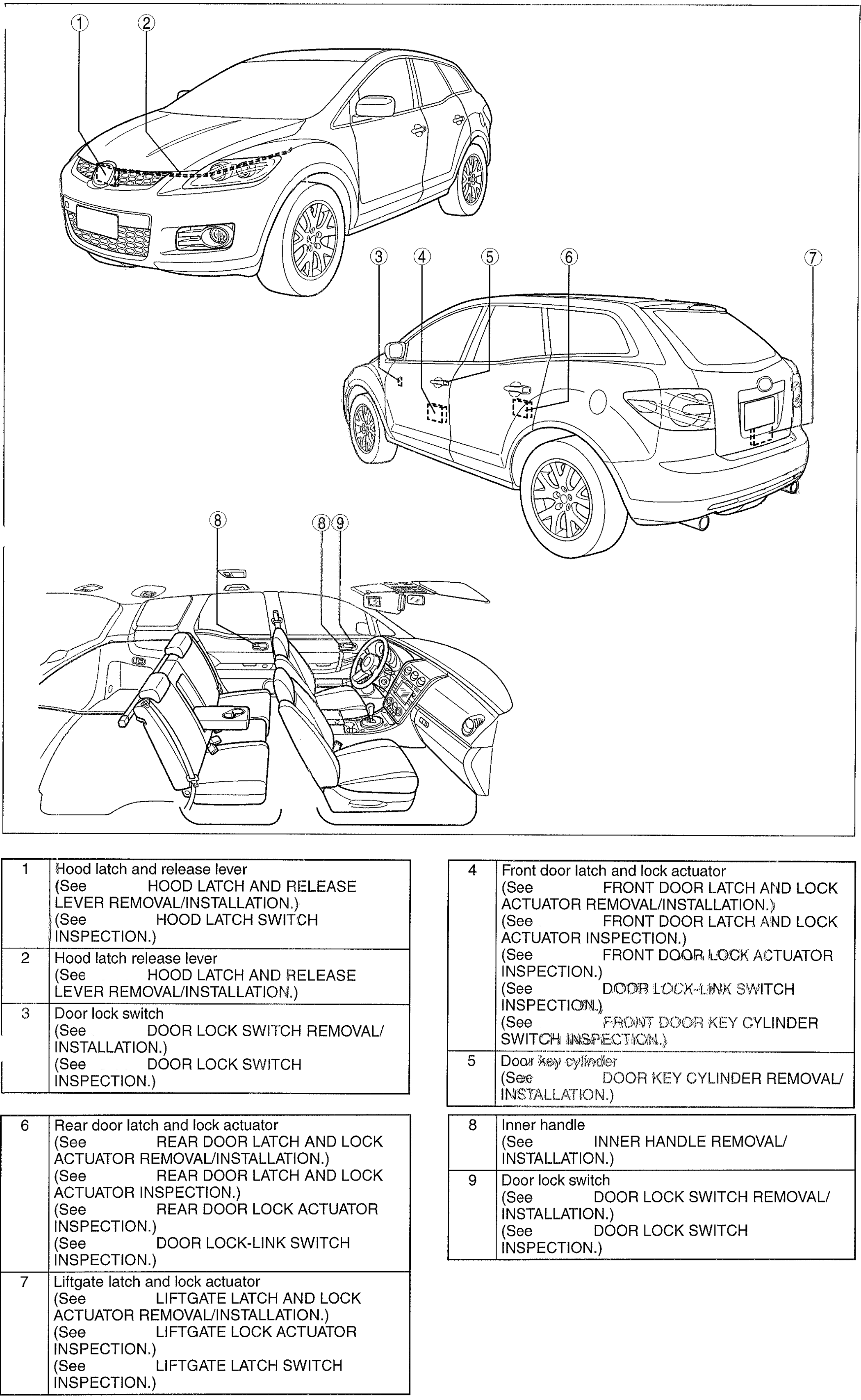

Fig 1: Identifying Locks & Openers
G00487285Courtesy of MAZDA MOTORS CORP.

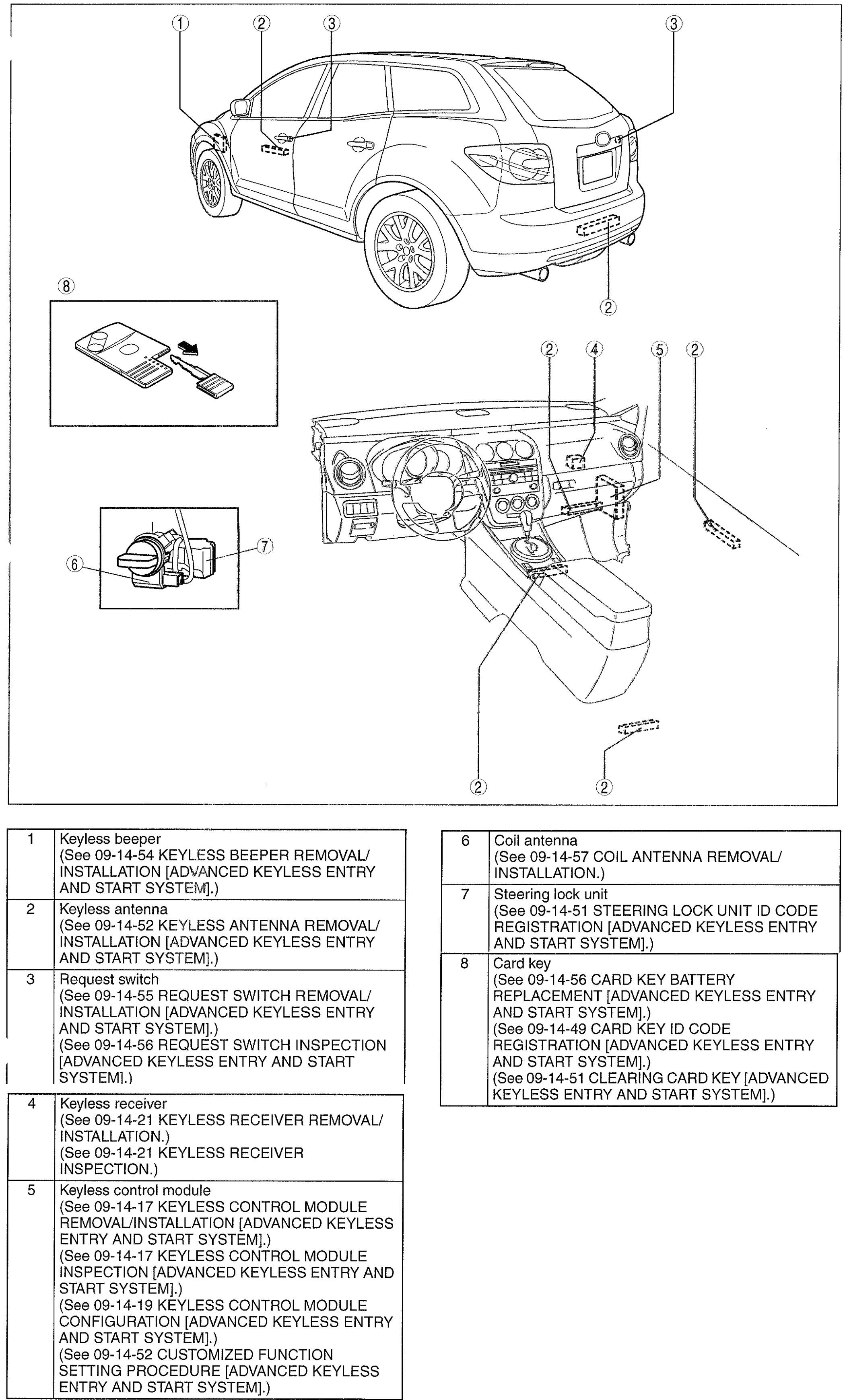

Fig 2: Identifying Advanced Keyless Entry & Start System/Immobilizer System
G00487282Courtesy of MAZDA MOTORS CORP.

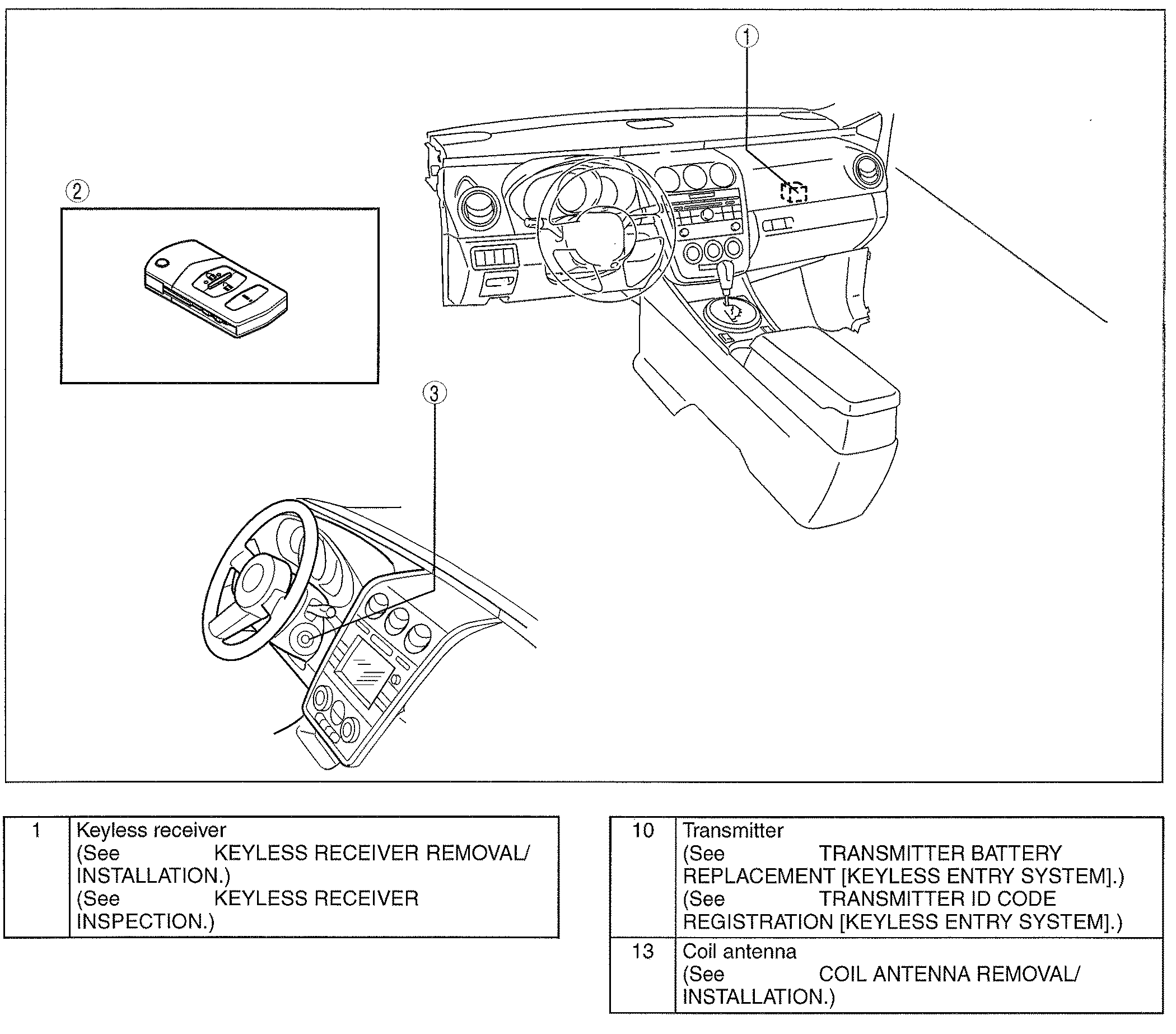

Fig 3: Identifying Keyless Entry System/Immobilizer System
G00487281Courtesy of MAZDA MOTORS CORP.
