Request Switch Removal/Installation [Advanced Keyless Entry And Start System]: Liftgate

  1. Disconnect the negative battery cable.
  2. Remove the nut, then remove the request switch from the liftgate.
  3. Install in the reverse order of removal.

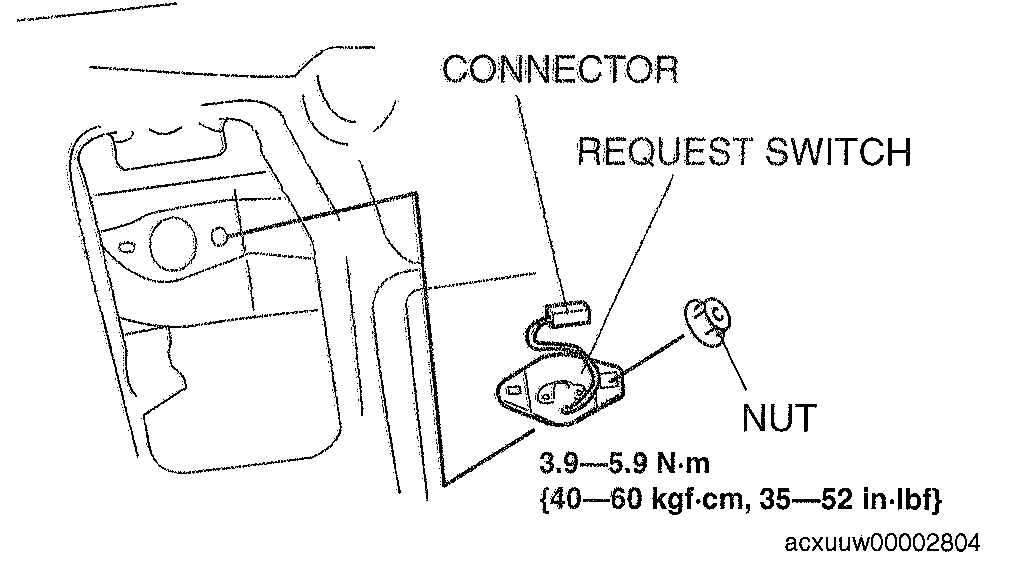

    Fig 1: Request Switch With Torque Specifications (Liftgate)
    G00487296
