Multifunction Switch Connector End View (C202A)

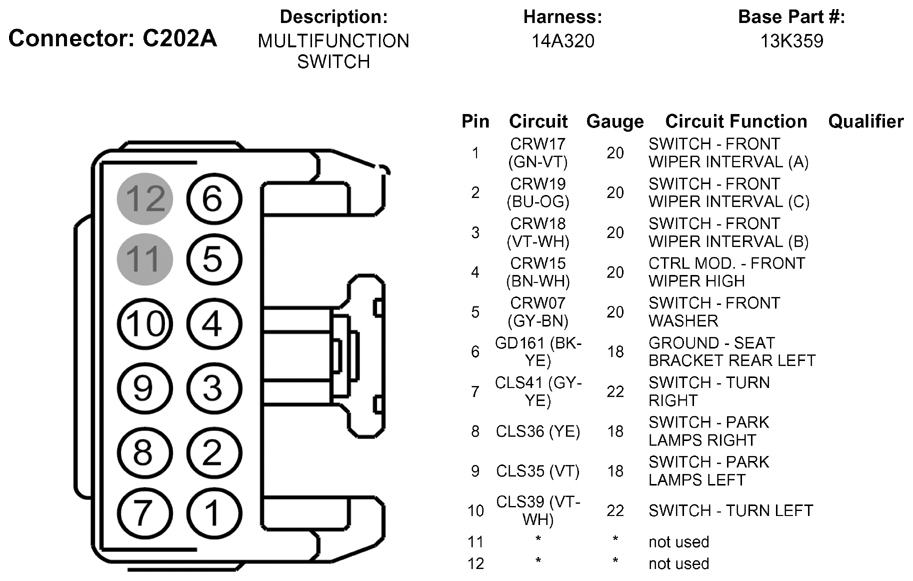

Fig 1: Multifunction Switch Connector End View (C202A)

G05788453
