Connector End Views - Security And Locks

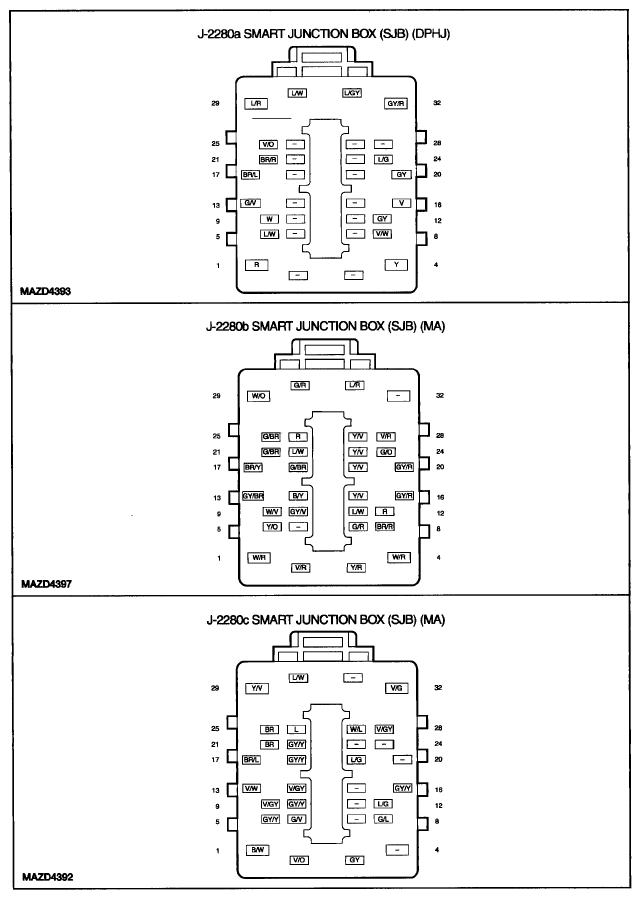

Fig 1: Identifying Connector End Views - Security And Locks (1 Of 3)
G05499612Courtesy of MAZDA MOTORS CORP.

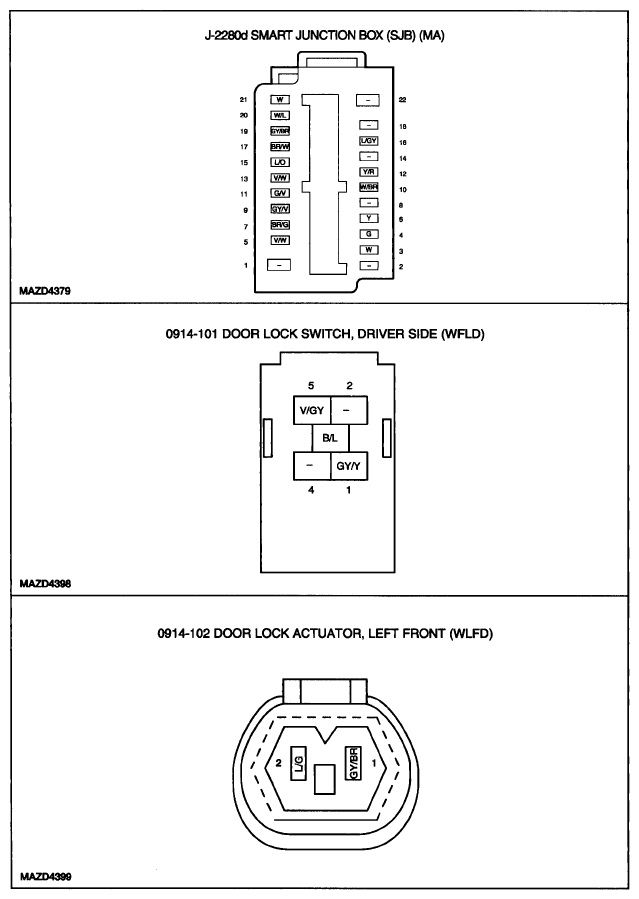

Fig 2: Identifying Connector End Views - Security And Locks (2 Of 3)
G05499613Courtesy of MAZDA MOTORS CORP.

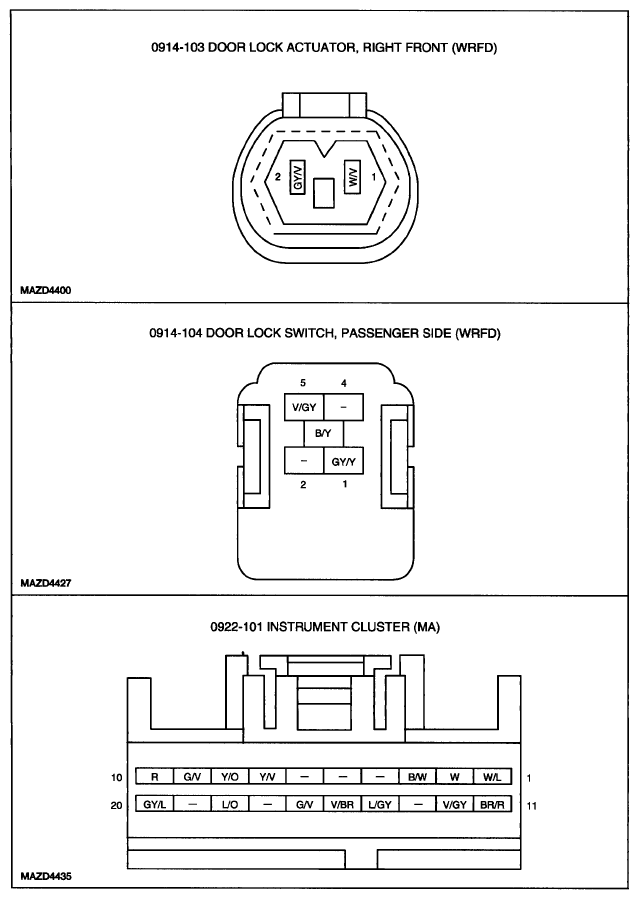

Fig 3: Identifying Connector End Views - Security And Locks (3 Of 3)
G05499614Courtesy of MAZDA MOTORS CORP.
