Powertrain Control Module (1 Of 2) Connector End View (C175T) (1 Of 2)

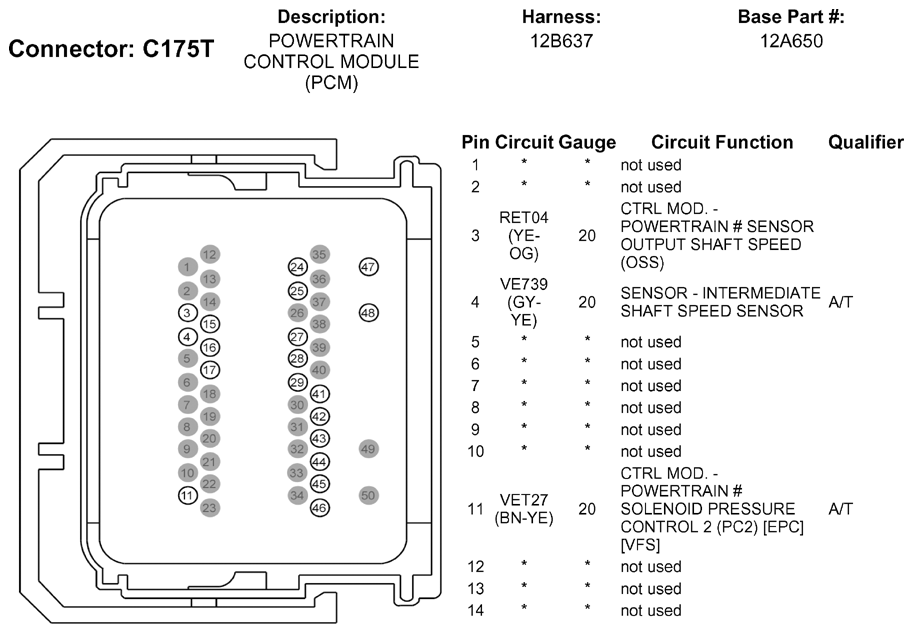

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175T) (1 Of 2)
G05788443

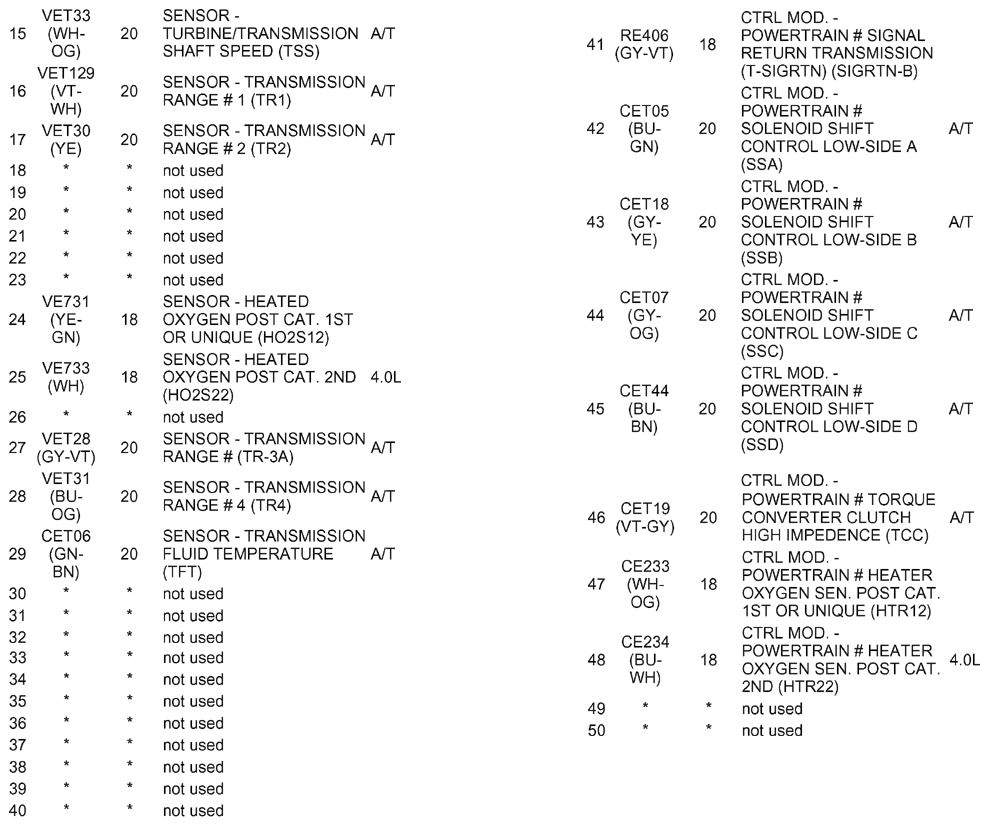

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175T) (1 Of 2)
G05788444
