Selector Lever Removal/Installation

  1. Disconnect the selector lever component connector.
    1. Disconnect the negative battery cable.
    2. Remove the rear console. See REAR CONSOLE REMOVAL/INSTALLATION .
    3. Disconnect the selector lever component connector.
  2. Remove the selector lever component.
    Fig 1: Identifying Selector Lever Component Connector
    G06205949Courtesy of MAZDA MOTORS CORP.
    1. Disconnect the selector cable from the selector lever.

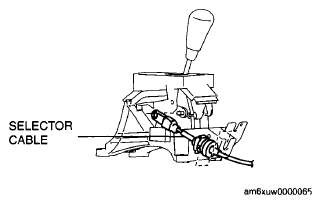

      Fig 2: Identifying Selector Cable
      G06205950Courtesy of MAZDA MOTORS CORP.
    2. Remove the selector lever component
  3. Install in the reverse order of removal.

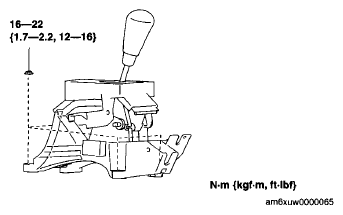

    Fig 3: Selector Lever Component Bolts And Torque Specifications
    G06205951Courtesy of MAZDA MOTORS CORP.
