Visual Inspection

  1. Inspect the following items:
    • If any of the following malfunctions are indicated, replace the spark plug.
      • Insulator breakage
      • Worn electrode
      • Damaged gasket
      • Badly burned insulator (sparking side)

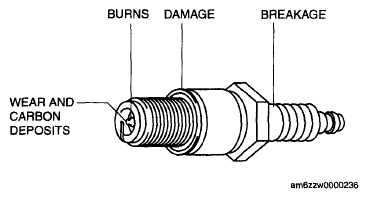

        Fig 1: Identifying Spark Plug Inspection Items
        G06205161Courtesy of MAZDA MOTORS CORP.
