Hood Latch And Release Lever Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Adjust the hood. (See HOOD ADJUSTMENT .)

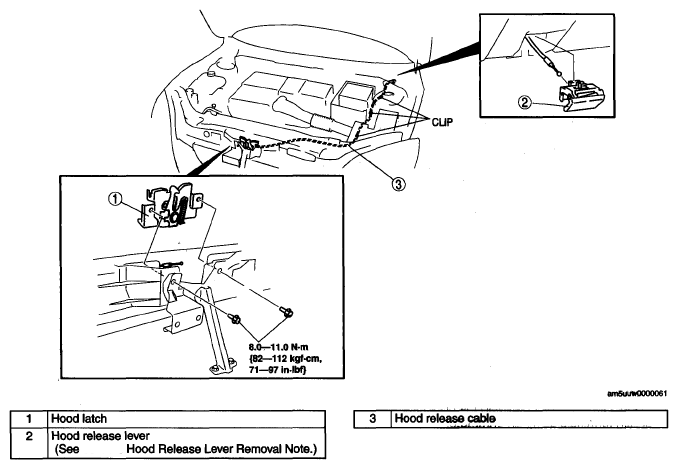

    Fig 1: Hood Latch And Release Lever Remove / Install Replacement Components With Torque Specifications
    G05543470Courtesy of MAZDA MOTORS CORP.
