Battery Removal/Installation [L3]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

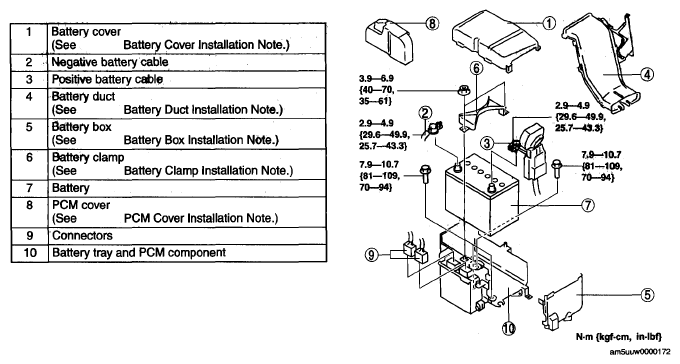

    Fig 1: View Of Battery Components With Torque Specifications
    G05543170Courtesy of MAZDA MOTORS CORP.
