Clock Spring Connector End View

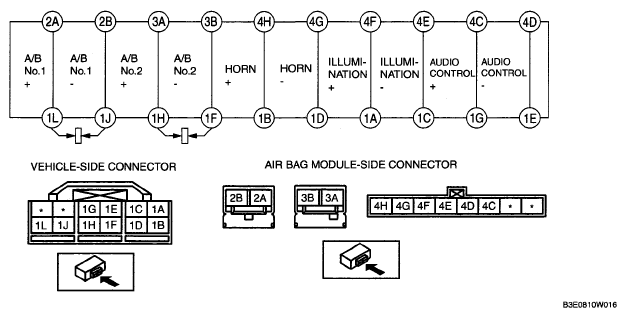

Fig 1: Clock Spring Connector End View

G04956469

Courtesy of MAZDA MOTORS CORP.
