Security Light 11, DTC B1681/P1260 [Immobilizer System (Keyless Entry System)]: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
SECURITY LIGHT 11, DTC B1681/P1260 DETECTION CONDITION AND POSSIBLE CAUSES

SECURITY LIGHT: 11  No detected communication with the coil antenna
DTC:  B1681/P1260
DETECTION CONDITION
  • No detected communication with the coil antenna
POSSIBLE CAUSE
  • Coil antenna malfunction
  • Instrument cluster malfunction
  • Malfunction in the related wiring harnesses

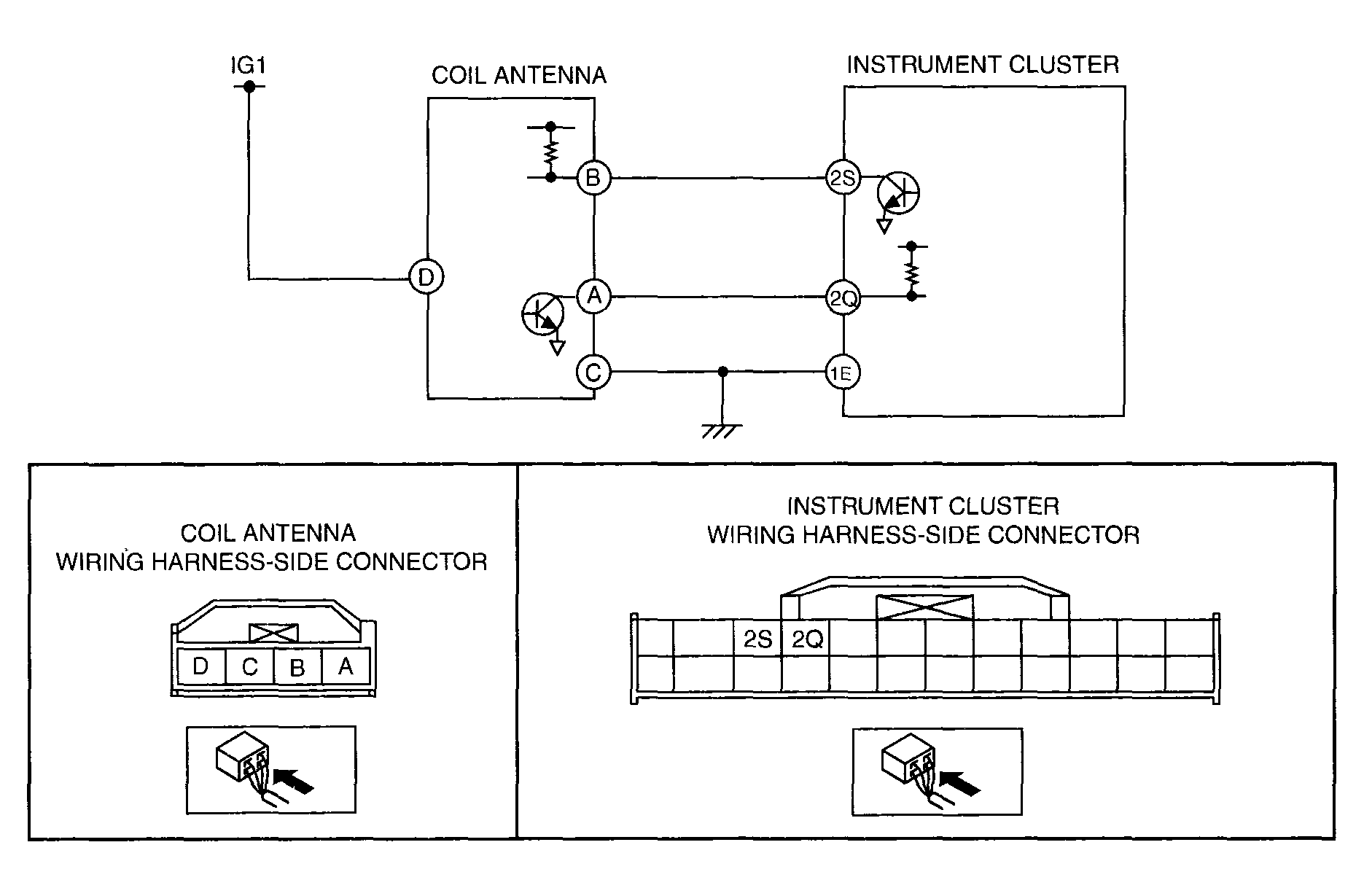

G04323339Courtesy of MAZDA MOTORS CORP.
