Abs System Wiring Diagram

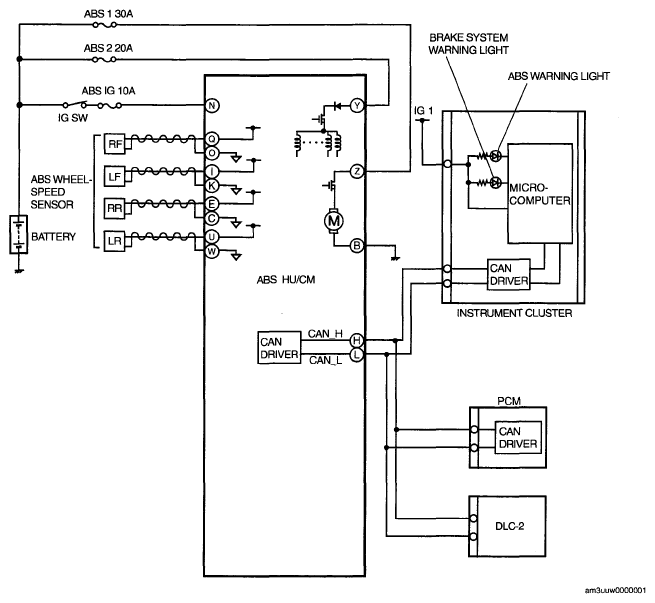

Fig 1: ABS System Wiring Diagram

G04955715

Courtesy of MAZDA MOTORS CORP.
