Climate Control Module Removal/Installation

WARNING: This page is about a different variant/trim than selected.

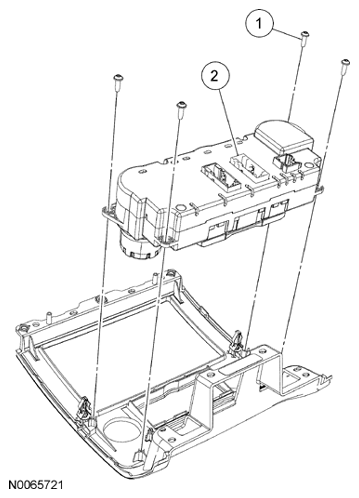

Fig 1: Identifying Climate Control Module Components

Courtesy of MAZDA MOTORS CORP.

CLIMATE CONTROL MODULE REFERENCE

1	Climate control module screws (4 required)
2	Climate control module

NOTE: When installing a new HVAC module on vehicles equipped with Electronic Manual Temperature Control (EMTC), the Programmable Module Installation (PMI) procedure must be carried out to configure the new module to the vehicle. See PROGRAMMABLE MODULE INSTALLATION (PMI) .

Remove the middle center instrument panel finish panel. See INSTRUMENT PANEL CENTER FINISH PANEL - MIDDLE REMOVAL/INSTALLATION .
Remove the 4 climate control module screws.
Remove the climate control module.
To install, reverse the removal procedure.
